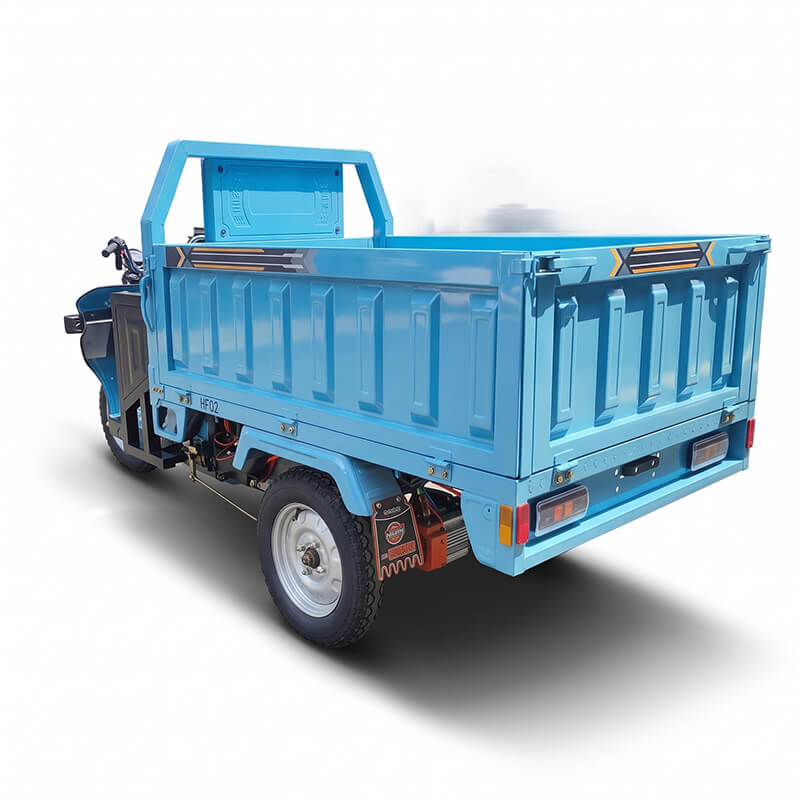

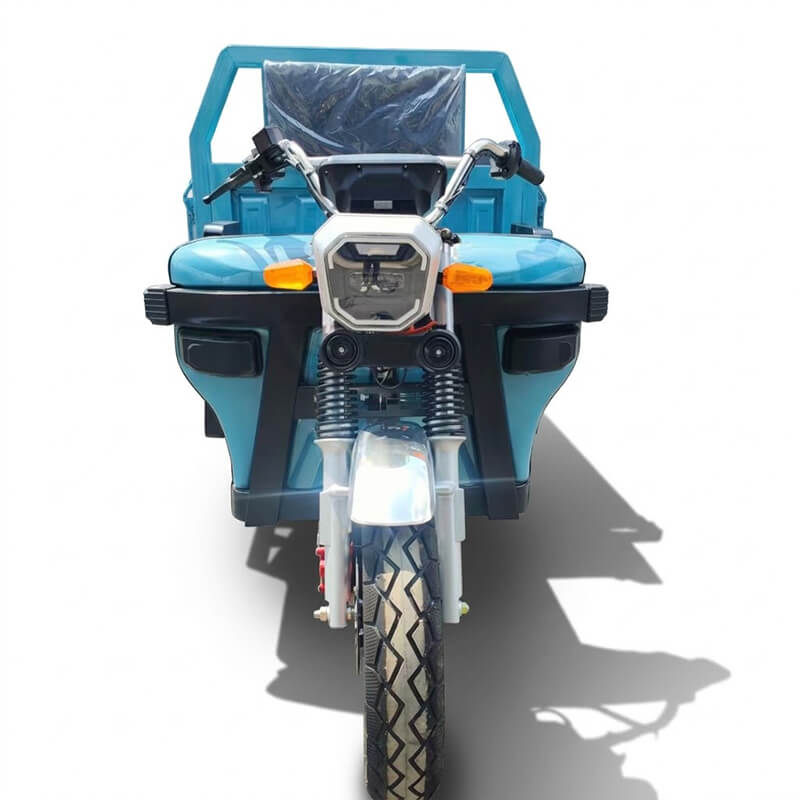

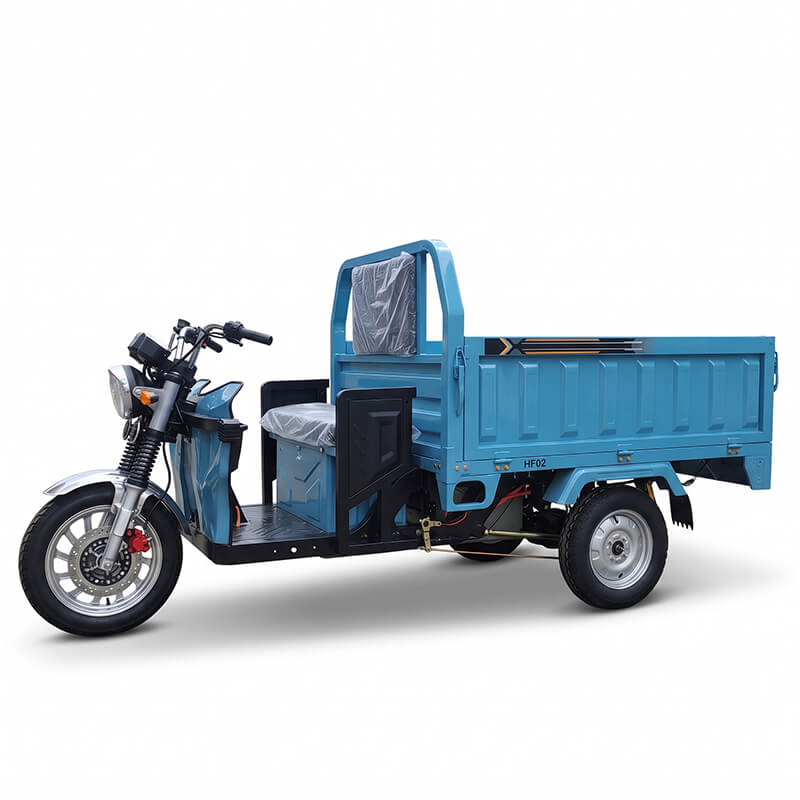

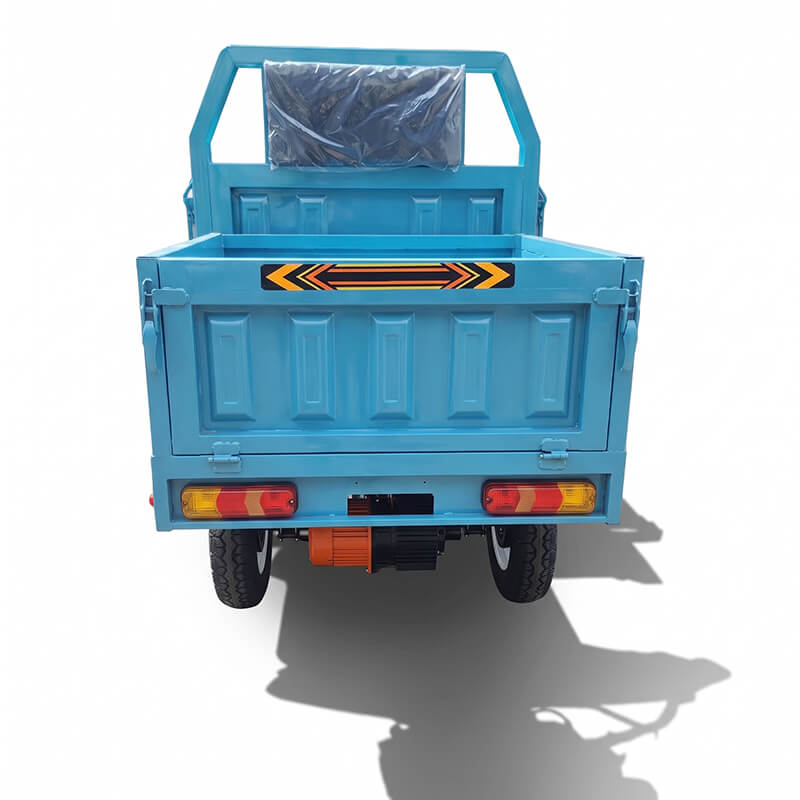

JIA002 EEC: The 1.6-Meter Land Patrol Electric Three-Wheeler for Cargo
Core Engineering Highlights & Commercial Cargo Advantages
- • EEC European Standard Homologation & Dual-Speed Compliance (25 / 43 km/h): Built strictly to European electric three-wheeler homologation standards with official EEC type-approval compliance. Supports factory configuration of 25 km/h (for license-free or low-speed urban bike/delivery lanes) or 43 km/h (for standard road transit), streamlining local CoC vehicle registration across EU member states.
- • 1.6-Meter Land Patrol Heavy Wagon (3180×1170×1460 mm, 2060mm Wheelbase): The 1.6-meter extended wagon platform provides high volumetric capacity and a balanced load center. With an overall body dimension of 3180×1170×1460 mm, 2060 mm extended wheelbase, and 955 mm wide rear tread, the vehicle maintains outstanding driving stability and rollover resistance under a full 200kg rated payload.
- • 60V / 72V 1500W Sci-Fi Permanent Magnet Powertrain (PMSM): Driven by a powerful 60V 1500W sci-fi permanent magnet motor compatible with a 72V cell voltage platform, paired with a dedicated 1500W intelligent vector controller. Delivers responsive high-torque acceleration, exceptional power conversion efficiency, and quiet, eco-friendly commercial performance.
- • Integrated Gear Shift Rear Axle with 180mm Brake Caliper: Constructed with a heavy-duty integrated gear shift housing featuring a mechanical climbing dual-ratio transmission. Drivers can shift into high-torque low gear at the touch of a lever to effortlessly climb steep multi-level warehouse ramps, agricultural hills, and bridge overpasses under full freight loads.
- • Front 280mm Hydraulic Pre-Market Disc Brake & Rear 180mm Drum Brake: Upgraded with an oversized 280 pre-market hydraulic front disc brake and a heavy-duty 180 rear drum brake, backed by an ergonomic mechanical parking handbrake lever. Delivers powerful, fade-free braking force and reliable ramp parking safety.
- • 43# Dragon Storm External Ring Shock Absorber & 10kg Wide Steel Leaf Springs: The front suspension features heavy-duty 43# Dragon Storm external ring shock absorbers to dampen road impacts, paired with ten kilograms of wide steel plate leaf springs at the rear axle to handle rigorous commercial loading and bumpy cobblestone road conditions without chassis deformation.
- • Front 110/90-16M/C Vacuum Tires on Enlarged Alloy Rims & Rear 4.00-12 Tires: Features an enlarged front aluminum wheel fitted with a motorcycle-grade 110/90-16M/C 65J vacuum tubeless tire for superior steering grip and directional stability, complemented by heavy-duty 4.00-12 72J rear vacuum tires for high load endurance.
- • Ergonomic Operator Amenities: Digital LCD Panel, 12V Dual Speakers & Foamed Cushion: Includes a foamed spring seat cushion for fatigue-free driving, an anti-glare digital instrument panel displaying real-time speed and battery status, high-brightness LED headlights, lampshade with 12V dual speakers, and a convenient built-in water cup holder.
- • Full OEM / ODM Customization Available: As a direct source manufacturer, all vehicle configurations are fully customizable: custom wagon lengths and side wall heights, stake rails or enclosed mesh cages, RAL custom fleet colors, brand logo silk-screening, 60V / 72V Lead-Acid or Lithium battery configurations, and CKD/SKD container loading plans that maximize unit count per 40HQ container.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Series & Model Designation | JIA002 EEC • The 1.6-Meter Land Patrol Electric Three-Wheeler for Cargo | Model JW01 EEC |
| Regulatory Homologation | EEC Certified (European Union Road-Legal Type Approval) | CoC Certificate Ready |
| Length of Wagon | 3180 mm | Standard 1.6m Series Wagon |
| Body Width | 1170 mm | Commercial Width |
| Vehicle Height | 1460 mm | Overall Vehicle Height |
| Wheelbase | 2060 mm | Extended Longitudinal Base |
| Tread / Wheel Track | 955 mm | Wide Stable Rear Track |
| Power-Driven Machine | 60V, 1500W Sci-Fi Permanent Magnet Motor (PMSM) | High Torque Brushless |
| Controller | 1500W Dedicated Permanent Magnet Controller | Intelligent Vector Module |
| Rear Axle System | Integrated gear shift housing with a 180 mm brake caliper | Dual-Ratio Climbing Gear |
| Front Fork Shock Absorber | 43# Dragon Storm External Ring Shock Absorber | Heavy-Gauge Suspension |
| Steel Spring Plate | Ten Kilograms of Wide Steel Plates (10kg Heavy Leaf Springs) | Fatigue-Resistant Springs |
| Front Wheel & Tire | 110/90-16M/C 65J vacuum tires with enlarged aluminum wheels | Enlarged Aluminum Wheel |
| Back Wheel & Tire | 4.00-12 72J Vacuum Tire (Tubeless) | High-Wear Heavy Tires |
| Maximum Speed | 25 km/h or 43 km/h (Dual Compliance Speed Range) | EEC Regulatory Option |
| Curb Weight | 270 kg | Solid Steel Construction |
| Rated Load Capacity | 200 kg (Standard Rated Cargo Payload) | Heavy-Duty Cargo Deck |
| Wiring Harness | High-temperature-resistant, nationally standardized dedicated isolation cable bundle | Flame-Retardant Safety |
| Headlight | High-Brightness LED Headlights | High-Lumen Optical Lens |
| Lampshade & Horn | Integrated Lampshade with 12V Dual Speakers | High-Decibel Dual Horns |
| Front Brake | 280 Pre-Market Disc Brakes (280mm Hydraulic Disc) | Oversized Disc Caliper |
| Rear Brake | 180 Drum Brake | 180mm Heavy Drum Unit |
| Cell Voltage | 72V | 72V Platform Compatible |
| Cockpit Comfort & Utilities | Foamed Spring Seat Cushion; Handbrake; Water Cup Holder; Digital Instrument Panel | Operator Amenities |
| OEM / ODM Customization | All Configurations Are Fully Customizable | Factory Direct OEM |

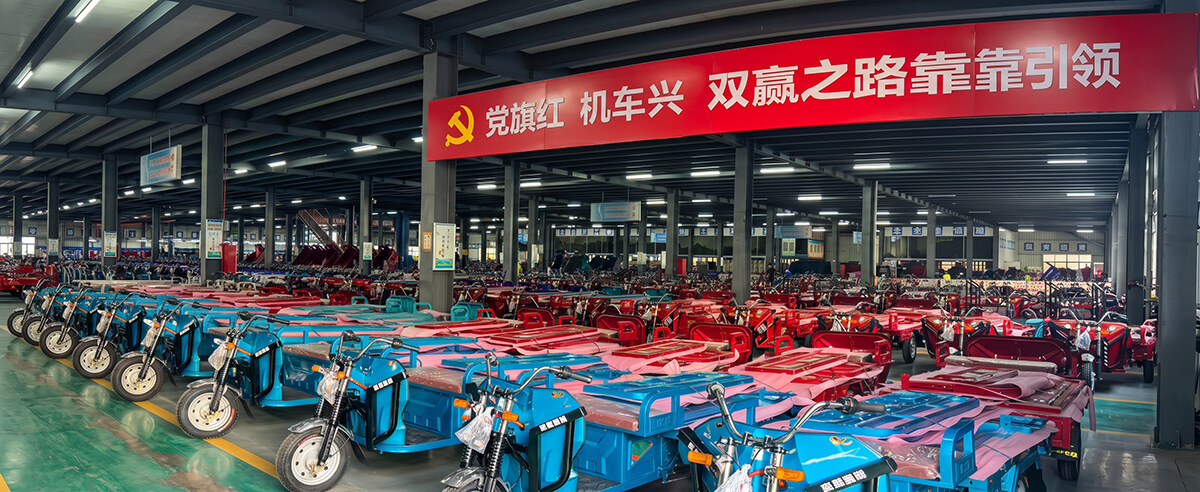

Factory Assembly Line & Standardized Manufacturing Craftsmanship
Commercial Land Patrol Fleet Application Scenarios
With full EEC compliance (25 km/h or 43 km/h), courier operators can navigate narrow European city centers, residential zones, and low-emission sectors for fast parcel delivery.
The 1.6-meter wagon deck easily transports raw material pallets, machine parts, and finished goods between workshops with zero exhaust emissions and low operational electricity costs.
Ideal for orchards, greenhouse farms, and rural growers. The 1500W permanent magnet motor with integrated climbing gear shift reliably carries heavy harvests over unpaved field ridges.
Accommodates gardening equipment, tree prunings, refuse barrels, and maintenance tools across parks, resort campuses, and urban estates with low noise and high reliability.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (JIA002 EEC Land Patrol Cargo Tricycle)
Q1: What European EEC homologation documents and dual speed options are provided for road registration?
The JIA002 / JW01 model is certified under European electric three-wheeler road standards. We provide complete EEC homologation documentation, including a Certificate of Conformity (CoC), to enable seamless license plate registration in EU countries. The vehicle can be factory-configured with a preset speed limit of 25 km/h (accommodating local low-speed regulations) or 43 km/h for standard commercial road operation.
Q2: What are the engineering advantages of the 1500W PMSM motor, integrated shifting axle, and front 280mm disc brake?
The 1500W permanent magnet synchronous motor (PMSM) operating on a 72V platform delivers high starting torque and thermal durability. The integrated gear shift housing incorporates an internal mechanical reduction gear that doubles wheel torque on steep grades or agricultural paths. For deceleration, the 280 pre-market hydraulic front disc brake and 180 rear drum brake provide reliable stopping force and anti-slip ramp parking holding.
Q3: Can the 1.6m wagon dimensions, guard rails, and battery platform be customized (OEM / ODM)?
Yes, all configurations are fully customizable (可以定制). As an original source manufacturer, LinkZoom EV offers customized wagon lengths and wall heights, optional stake rails or protective mesh cages, custom fleet colors, brand logo silk-screening, 60V / 72V deep-cycle Lead-Acid or Lithium battery configurations, and CKD/SKD container loading options that maximize unit count per 40HQ container.
Request Wholesale Pricing & Container Loading Plan
Guided by our business philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we warmly welcome international cargo trike distributors, European EEC mobility importers, and fleet contractors to visit our 78,000 m² manufacturing facility in Fengxian, Xuzhou.
