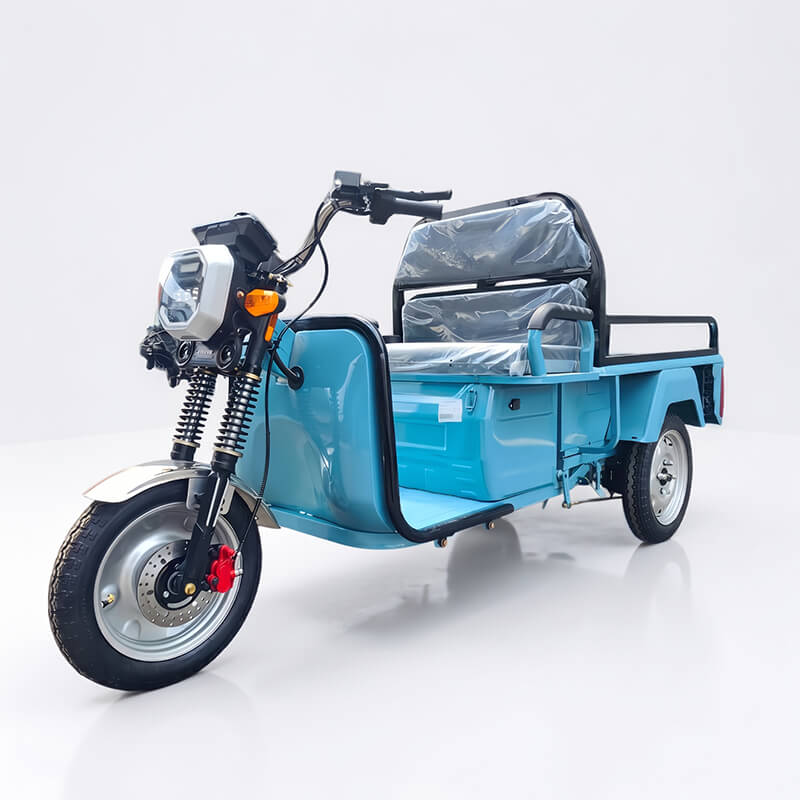

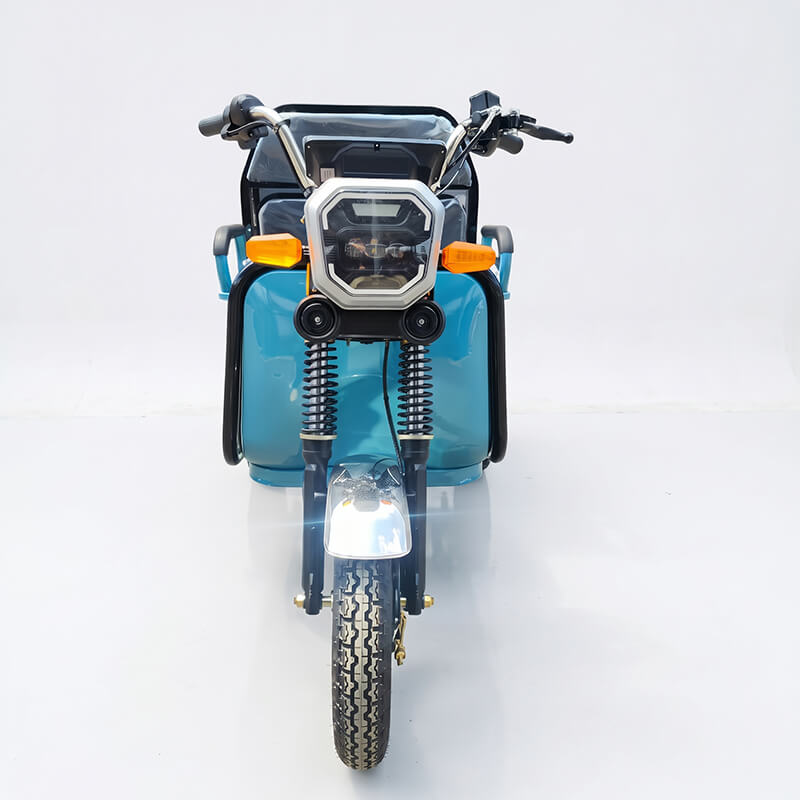

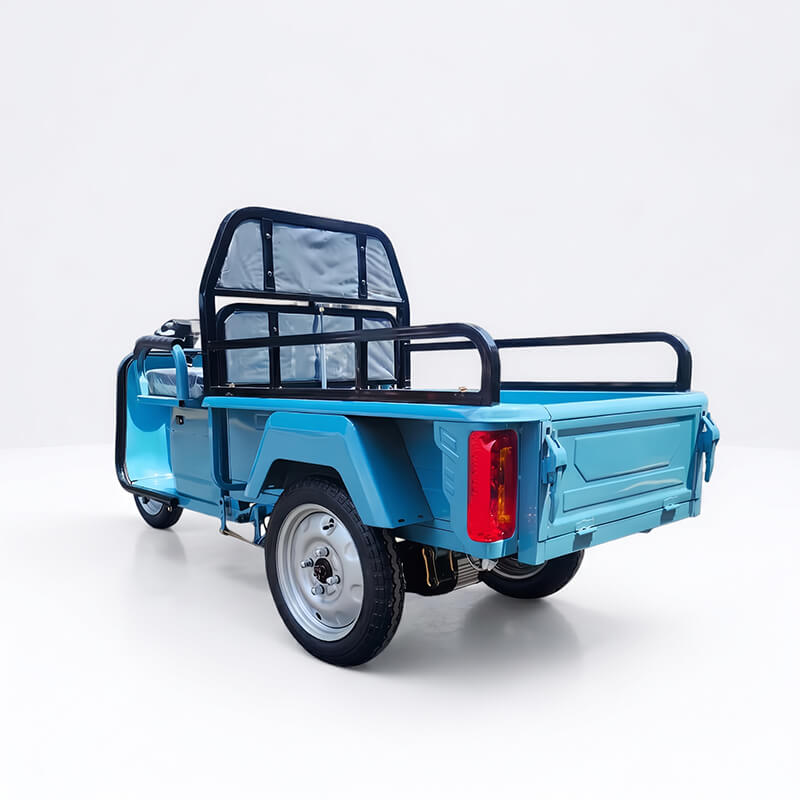

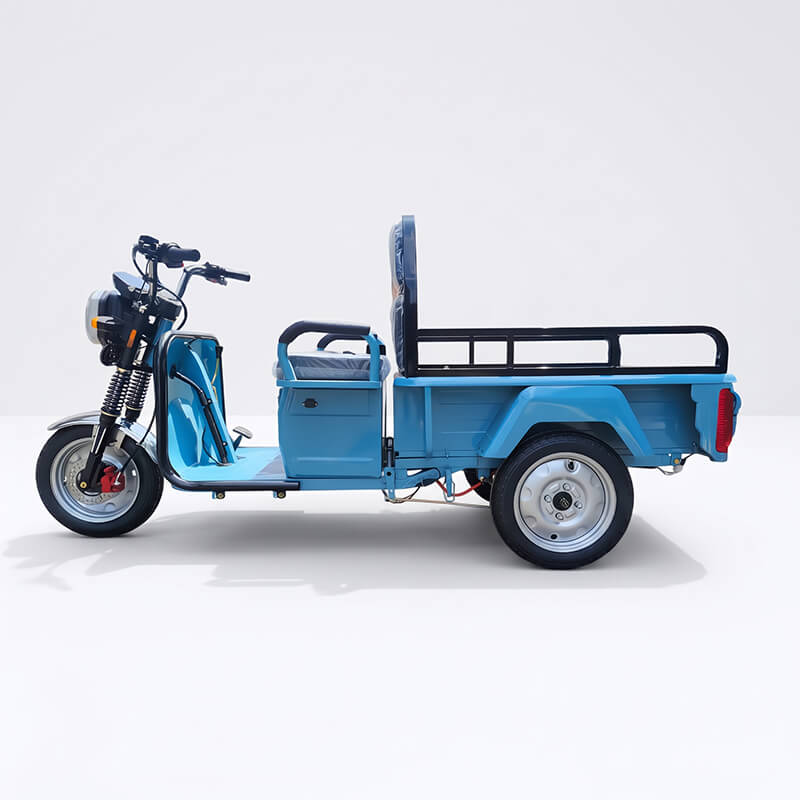

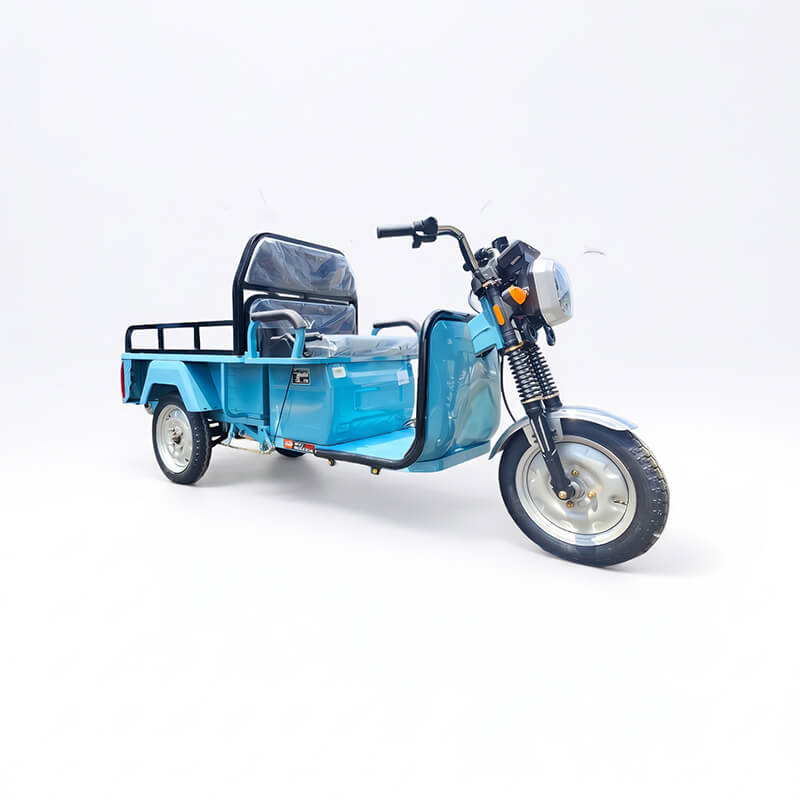

JIA001 EEC: The 1.1-Meter Flat Panel Electric Three-Wheeler for Cargo
Core Engineering Highlights & Commercial Flat-Bed Advantages
- • EEC European Standard Homologation & Dual-Speed Compliance (25 / 43 km/h): Built strictly to European electric vehicle regulatory specifications with official EEC type-approval compliance. Configurable with dual factory speed settings of 25 km/h (for license-free / low-speed urban bike lane regulations) or 43 km/h (for standard road transit), streamlining local CoC vehicle registration across EU member states.
- • 1.1-Meter Open Flat Panel Cargo Deck (2025×885×1155 mm): The flat panel cargo platform offers unobstructed 3-side loading and unloading flexibility. Compact 885 mm body width, 1680 mm wheelbase, and 735 mm tread enable nimble passage through narrow European streets, warehouse aisles, greenhouse paths, and pedestrian courier zones.
- • 60V 1000W High-Efficiency Sci-Fi Permanent Magnet Motor: Driven by a robust 60V 1000W sci-fi permanent magnet brushless motor coupled with a dedicated 1000W permanent magnet intelligent controller. Provides responsive low-end torque, high energy conversion efficiency, and quiet, eco-friendly operation under full rated payload.
- • Integrated Gear Shift Rear Axle with 130mm Brake Caliper: Engineered with an integrated gear shift housing featuring a high/low dual-ratio mechanical climbing transmission. Operators can shift into high-torque low gear to double traction when carrying freight up steep parking garage ramps or rural inclines.
- • Front 180 Hydraulic Disc Brake & Rear 130 Drum Brake + Handbrake: Equipped with a high-performance 180 pre-market hydraulic front disc brake and a heavy-duty 130 rear drum brake. Supported by an ergonomic mechanical parking handbrake, delivering short stopping distance and anti-slip ramp parking security.
- • 31# Wound External Spring Front Fork & 4-Piece Leaf Springs (5kg Each): Front suspension features heavy-duty 31# wound external spring shock absorbers to smooth out cobblestone road vibration, paired with four heavy-duty steel leaf spring plates (5 kg each) at the rear axle to handle a 150 kg rated payload with high fatigue resistance.
- • All-Around 3.00-12 Vacuum Tubeless Tires & Flame-Retardant Wiring: Fitted with puncture-resistant 3.00-12 front and rear vacuum tubeless tires on stamped steel rims, combined with a high-temperature-resistant, nationally standardized dedicated isolation cable bundle, providing superior electrical insulation, fire safety, and water resistance.
- • Ergonomic Operator Cockpit: Digital Panel, Dual Speakers & Foamed Spring Seat: Designed for operator comfort during full-day working shifts: features a foamed spring seat cushion, anti-glare digital LCD instrument cluster, high-brightness LED headlights, integrated lampshade with 12V dual speakers, and a convenient built-in water cup holder.
- • Full OEM / ODM Customization Available: As a direct source factory, all vehicle configurations are fully customizable: custom flatbed dimensions, detachable side guard rails or cargo box stakes, customized RAL body colors and logos, 60V Lead-Acid or Lithium battery configurations, and space-saving CKD/SKD container export packaging.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Series & Model Designation | JIA001 EEC • The 1.1-Meter Flat Panel Electric Three-Wheeler for Cargo | Model JW02 EEC |
| Regulatory Homologation | EEC Certified (European Union Road-Legal Type Approval) | CoC Certificate Ready |
| Length of Wagon | 2025 mm | Standard Wagon Length |
| Body Width | 885 mm | Narrow Urban Passage |
| Vehicle Height | 1155 mm | Overall Vehicle Height |
| Wheelbase | 1680 mm | High Longitudinal Stability |
| Tread / Wheel Track | 735 mm | Rear Track Width |
| Power-Driven Machine | 60V, 1000W Sci-Fi Permanent Magnet Motor (PMSM) | High Torque Brushless |
| Controller | 1000W Dedicated Permanent Magnet Controller | Intelligent Vector Module |
| Rear Axle System | Integrated gear shift housing with a 130 mm brake caliper | Dual-Ratio Climbing Gear |
| Front Fork Shock Absorber | 31# Wound External Spring Shock Absorber | Heavy Front Suspension |
| Steel Spring Plate | Four Pieces, 5 Kilograms Each (4×5kg Heavy Leaf Springs) | Heavy-Duty Rear Springs |
| Front Wheel & Tire | 3.00-12 Vacuum Tire (Tubeless) | Puncture-Proof Tubeless |
| Back Wheel & Tire | 3.00-12 Vacuum Tire (Tubeless) | High-Wear Cargo Tires |
| Maximum Speed | 25 km/h or 43 km/h (Dual Compliance Speed Range) | EEC Regulatory Option |
| Curb Weight | 112 kg | Ultra-Lightweight Body |
| Rated Load Capacity | 150 kg (Standard Rated Cargo Payload) | Reinforced Cargo Deck |
| Wiring Harness | High-temperature resistant, nationally standardized dedicated isolation cable bundle | Flame-Retardant Safety |
| Headlight | High-Brightness LED Headlights | Optical Lens Illuminator |
| Lampshade & Horn | Integrated Lampshade with 12V Dual Speakers | High-Decibel Dual Horns |
| Front Brake | 180 Pre-Market Disc Brakes (180mm Hydraulic Disc) | Precision Disc Caliper |
| Rear Brake | 130 Drum Brake | Heavy Drum Unit |
| Cell Voltage | 60V | Standard Voltage Platform |
| Cockpit Comfort & Utilities | Foamed Spring Seat Cushion; Handbrake; Water Cup Holder; Digital Instrument Panel | Operator Amenities |
| OEM / ODM Customization | All Configurations Are Fully Customizable | Factory Direct OEM |

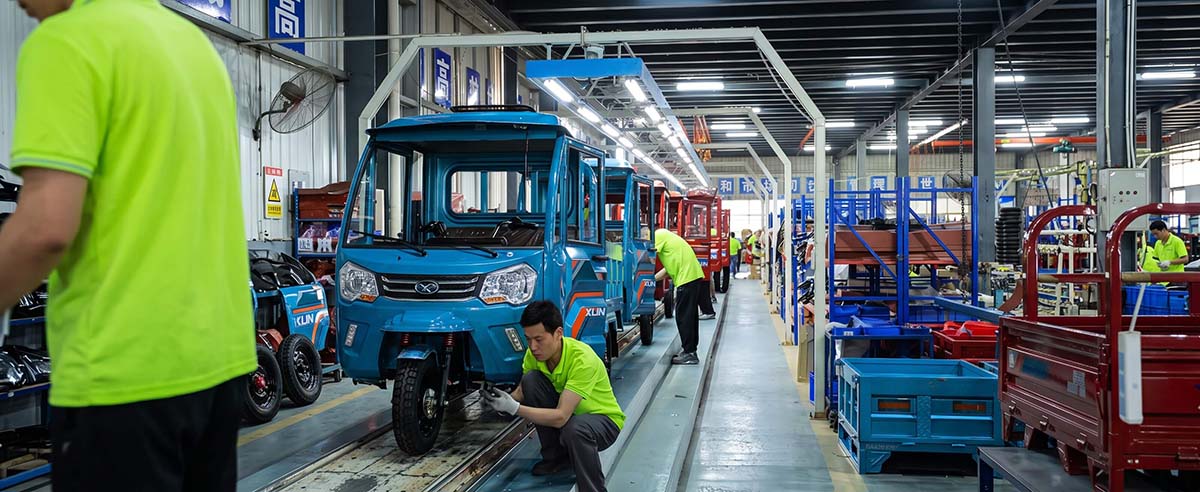

Factory Assembly Line & Standardized Manufacturing Craftsmanship
Commercial Flat Panel Fleet Application Scenarios
With an 885 mm narrow profile and EEC road compliance (25 km/h or 43 km/h), couriers can easily navigate busy pedestrian walkways, downtown streets, and apartment alleys for swift parcel hand-offs.
The 1.1-meter open flat deck allows forklifts and manual workers to load crates, machinery parts, and cartons from any side, providing zero-emission indoor/outdoor material handling.
Carries pruning tools, lawnmowers, watering barrels, and waste bags across public parks, botanical gardens, and residential communities with low noise and zero tailpipe emissions.
Low platform deck height makes loading fruit baskets, vegetable trays, and fertilizer bags effortless. The 1000W motor with climbing gear shift handles uneven farm ridges reliably.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (JIA001 EEC Flat Panel Cargo Tricycle)
Q1: What European EEC homologation documents and speed options are provided for road registration?
The JIA001 / JW02 model is designed to satisfy European electric three-wheeler road standards. We provide complete EEC homologation documentation, including a Certificate of Conformity (CoC), to enable seamless license plate registration in EU countries. The vehicle can be ordered with a preset speed limit of 25 km/h (accommodating local low-speed regulations) or 43 km/h for standard commercial road operation.
Q2: What are the engineering advantages of the integrated shifting rear axle and 180 front disc brake?
The integrated gear shift housing incorporates an internal mechanical reduction gear that allows the 1000W permanent magnet motor to double its climbing torque on steep ramps, bridging, or agricultural terrain. For deceleration, the 180 pre-market front disc brake provides instantaneous hydraulic bite without brake fade, while the rear 130 drum brake and mechanical parking handbrake ensure fail-safe holding.
Q3: Can the 1.1m flat panel platform and battery setup be customized (OEM / ODM)?
Yes, all configurations are fully customizable. As an original source manufacturer, LinkZoom EV offers customized flat panel dimensions, optional fold-down or stake side rails, custom fleet colors, brand logo silk-screening, 60V deep-cycle Lead-Acid or Lithium battery configurations, and CKD/SKD container loading options that maximize unit count per 40HQ container.
