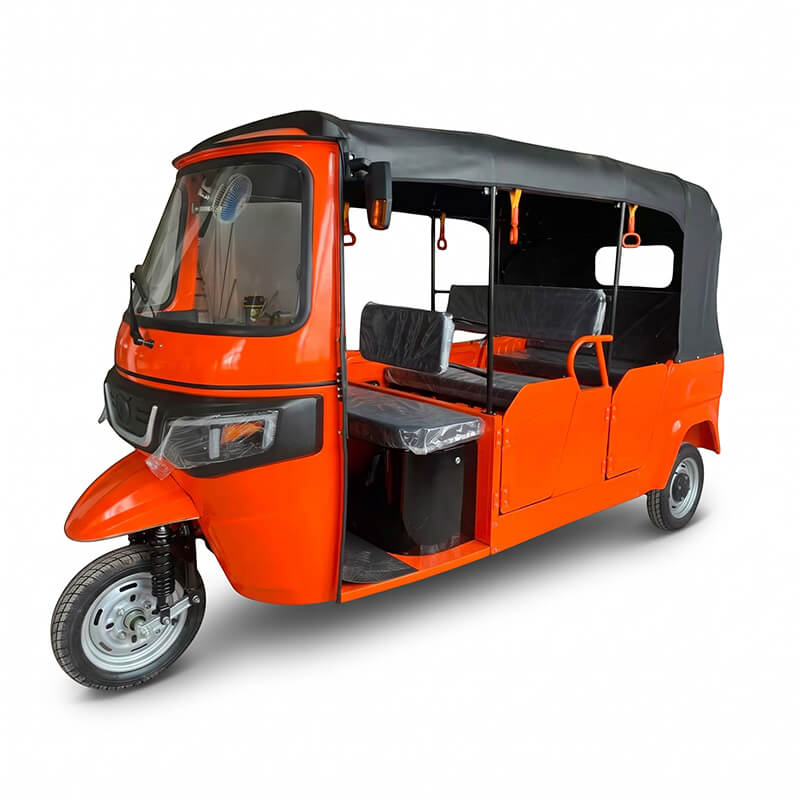

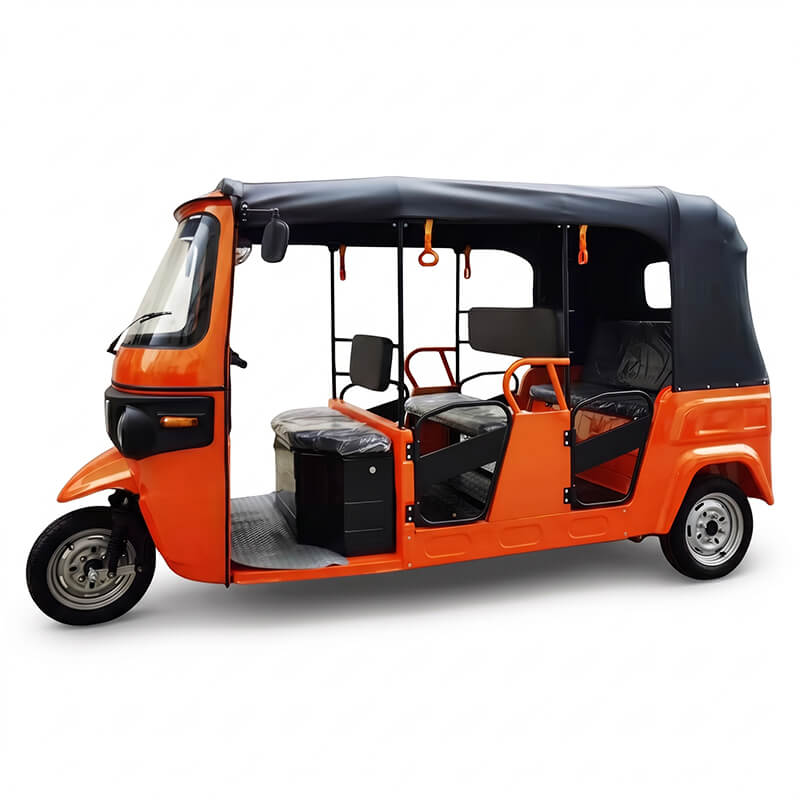

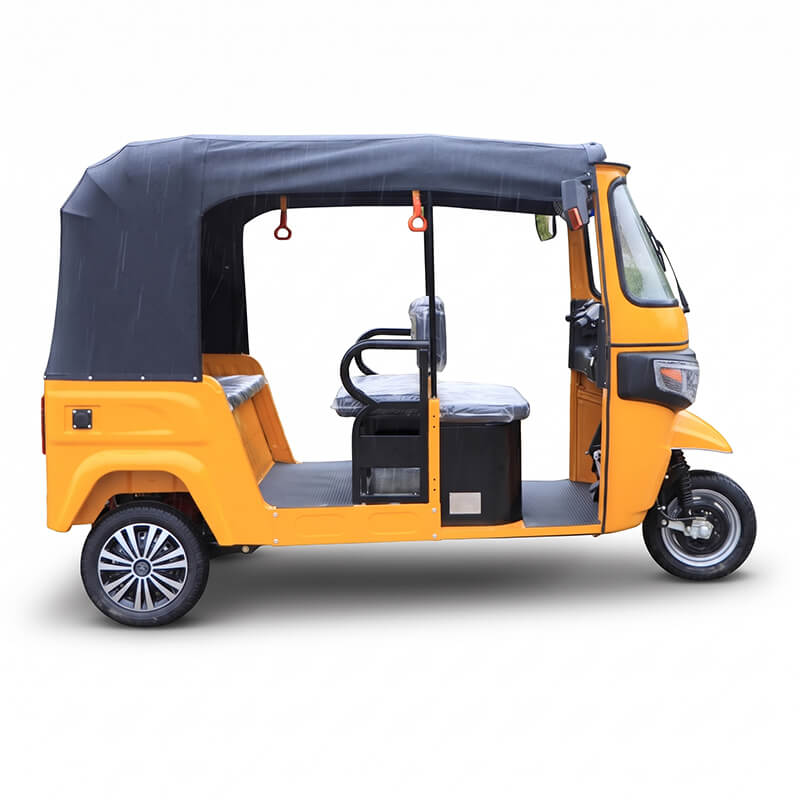

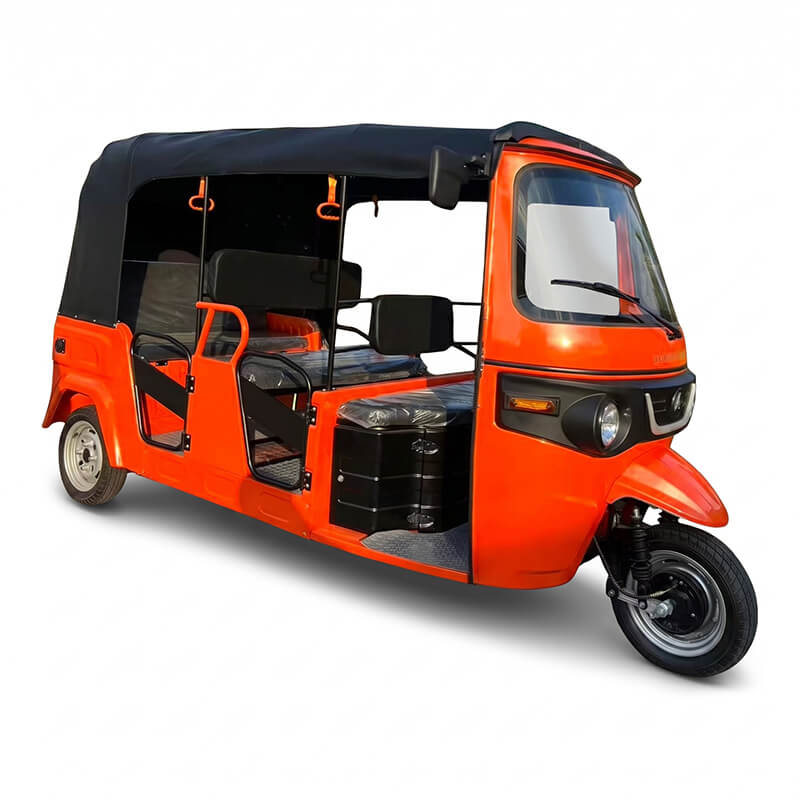

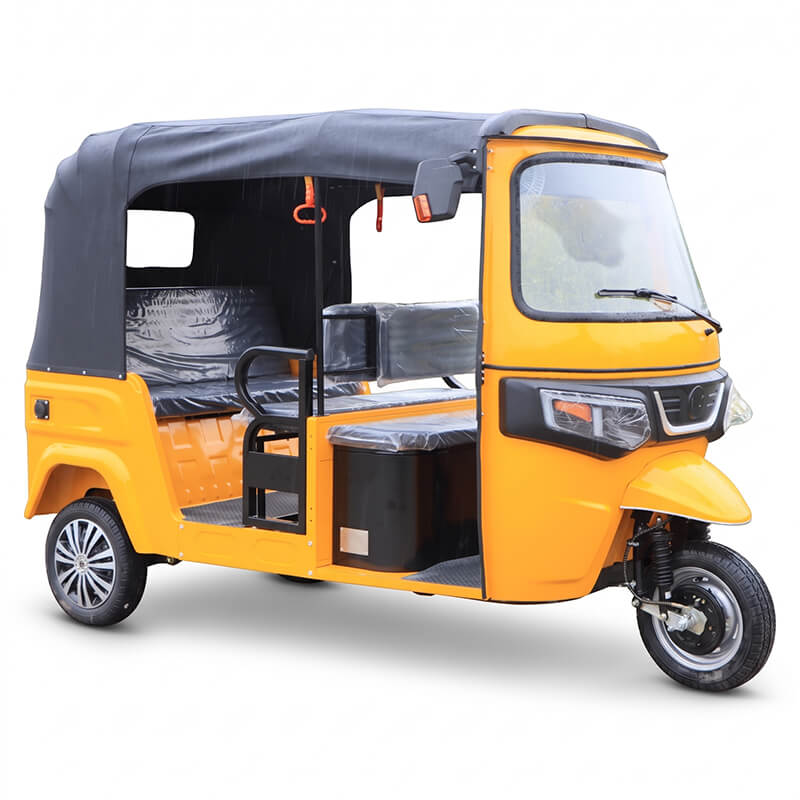

100km Long Range Taxi Tuk Tuk Closed Adult 6 Passenger Electric Tricycle (4000W PMSM Drive)
Manufactured by Xuzhou LinkZoom New Energy Technology Co., Ltd. for high-capacity urban taxi fleets, commuter feeder lines, and tourist shuttle operations. Engineered with an extended 3340×1350×1770 mm double-row 1+6 passenger body, 4000W automotive-grade flat-wire PMSM, vector rotary variable controller, and cage independent rear suspension.
Core Engineering Highlights & Commercial Fleet Advantages
Purpose-built for B2B transit operators and vehicle importers sourcing a 100 km long-range taxi tuk-tuk, the LinkZoom Double-Row Passenger Tuk-Tuk expands cabin capacity to 1 driver + 6 passengers within a 3340 × 1350 × 1770 mm body. It combines an automotive-grade 4000W flat-wire PMSM motor with cage independent rear suspension to handle multi-passenger commercial routes up to 70 km/h.
- • Double-Row 1+6 Adult Passenger Cabin (3340×1350×1770 mm): Extended double-row seating accommodates 1 driver and 6 adult passengers under a weather-protected, closed-canopy structure, increasing per-trip passenger revenue by 50% compared to 4-seater models while maintaining a 360 kg net weight.
- • 4000W Automotive-Grade Flat-Wire PMSM Powertrain: The high-slot-fill flat-wire permanent magnet synchronous motor delivers high thermal efficiency, sustained climbing torque under a 7-person load, and a maximum speed of 70 km/h.
- • Vehicle Vector Algorithm Rotary Variable Controller: The automotive vector control algorithm with resolver feedback ensures smooth torque delivery, anti-jerk acceleration in stop-and-go city traffic, and optimized energy consumption for long-range operation.
- • Cage Independent Suspension Rear Axle & Double-Spring Damping: Features a cage independent suspension rear axle paired with front double-spring rocker-arm shock absorption, keeping the extended 3340 mm chassis level and stable on uneven roads.
- • Front & Rear CBS Hydraulic Drum Brakes + 125/65R12 Tubeless Tires: The Combined Braking System (CBS) synchronizes front and rear hydraulic drum braking force to shorten stopping distances under a full 6-passenger load, supported by wear-resistant 125/65R12 tubeless tires.
- • All-Weather Lighting, Signaling & Digital Cockpit: Equipped with an electronic liquid crystal display (LCD) instrument, LED bright headlight + bilateral lamps, turn signals, single horn, and an electric single windshield wiper.
- • Optional 60V / 72V 100Ah Lithium Battery for Long-Range Taxi Duty: Configurable with a high-capacity 60V or 72V 100Ah lithium battery pack (optional accessory) to support 100km-class long-range daily commercial passenger routes, or supplied ex-battery for distributors with local battery assembly.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Name & Series | Double-Row Passenger Tuk-Tuk (TUKTUK Passenger Series) | Model LZ-T02 |
| Vehicle Dimensions | 3340 × 1350 × 1770 mm | Extended Double-Row Body |
| Number of Load (Seating Capacity) | 1 + 6 Persons (1 Driver + 6 Adult Passengers) | 6-Passenger Cabin |
| Motor | 4000W Automotive-Grade Flat-Wire Permanent Magnet Synchronous Motor (PMSM) | Standard Drive |
| Maximum Speed | 70 km/h | — |
| Control System | Vehicle Vector Algorithm Rotary Variable Controller | Automotive Vector Control |
| Rear Axle System | Cage Independent Suspension | Independent Rear Axle |
| Braking System | Front and Rear CBS Hydraulic Drum Brake | Combined Braking System |
| Shock Absorber | Double Spring Rocker Arm Type Shock Absorption | Heavy-Duty Damping |
| Tire Size | 125/65R12 (Tubeless Tire) | All Wheels |
| Net Weight | 360 kg | Excluding Battery |
| Horn | Single Horn | Standard |
| Instrument | Electronic Liquid Crystal Display (LCD) | Digital Cluster |
| Headlight + Bilateral Lamp | LED Bright Light | Front & Side LED |
| Steering Indication | Turn Signal | Standard |
| Windshield Wiper Motor | Single Wiper | Electric Wiper |
| Battery | 60V / 72V 100Ah (Lithium Battery) | Optional Accessory |
Commercial Application Scenarios (1+6 High-Capacity Shuttle)
Carries 6 adult passengers per trip along fixed urban corridors and transit hubs, maximising per-kilometre fare revenue for commercial taxi operators.
With the optional 60V/72V 100Ah lithium battery pack and vector rotary controller, it supports longer daily operating shifts with reduced charging downtime.
The closed canopy roof, front windshield with electric wiper, and cage independent rear suspension keep 6 adult passengers protected from sun and rain.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle industrial base — Xuzhou LinkZoom New Energy Technology Co., Ltd. specialises in the R&D, production, and manufacturing of electric tricycles across five core product lines: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalog (Tier 1).
- Enterprise Honours: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardisation, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (Double-Row 6-Passenger Electric Tuk-Tuk)
Q1: How does the Double-Row 6-Passenger model (LZ-T02) differ from the Single-Row 4-Passenger model (LZ-T01)?
The Double-Row model extends the vehicle dimensions to 3340 × 1350 × 1770 mm (compared to 2600 × 1330 × 1800 mm on the single-row model) and increases seating capacity to 1 + 6 persons (1 driver + 6 adult passengers) with a net weight of 360 kg. Both models share the same high-torque 4000W automotive-grade flat-wire PMSM motor, vector rotary controller, cage independent rear suspension, and CBS hydraulic drum brakes.
Q2: What battery configuration supports the 100km long-range taxi tuk-tuk operation?
This model supports an optional 60V or 72V 100Ah Lithium Battery pack. Combined with the high-efficiency 4000W flat-wire permanent magnet synchronous motor and Vehicle Vector Algorithm Rotary Variable Controller, the lithium battery option is designed for long-range daily commercial taxi and shuttle service. Buyers may order the vehicle with factory-installed lithium batteries or without batteries for local sourcing.
Q3: How is ride stability maintained when carrying 1 driver and 6 adult passengers?
To support a full 1+6 load, the chassis combines a cage-independent-suspension rear axle with front double-spring rocker-arm shock absorption, 125/65R12 tubeless tires, and synchronized front and rear CBS hydraulic drum brakes.
Request Wholesale Pricing & Container Loading Plan
Guided by our philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we welcome global distributors and fleet buyers to visit our 78,000 m² production base in Fengxian, Xuzhou.
