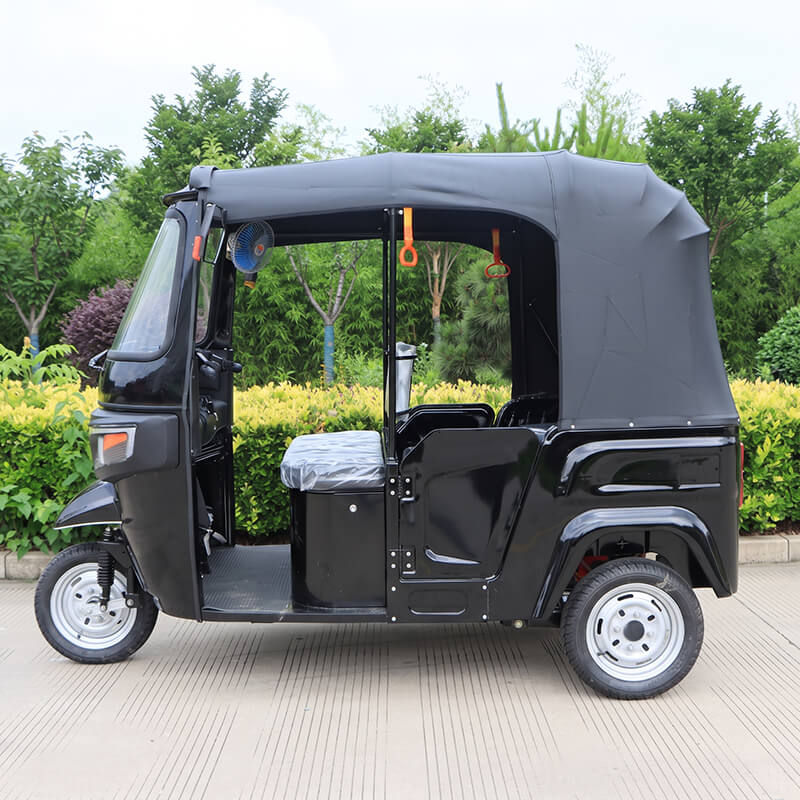

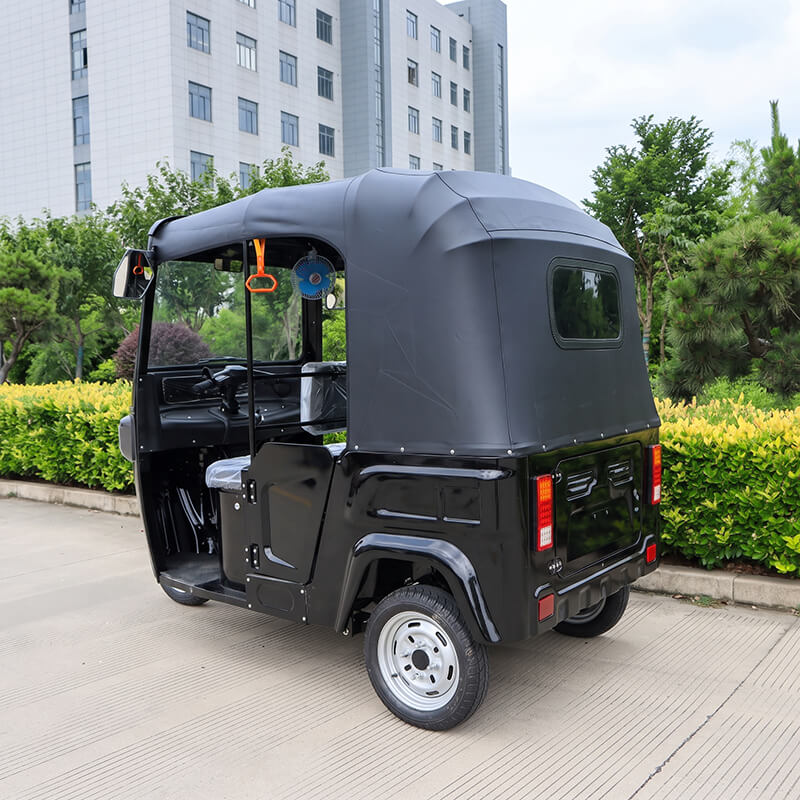

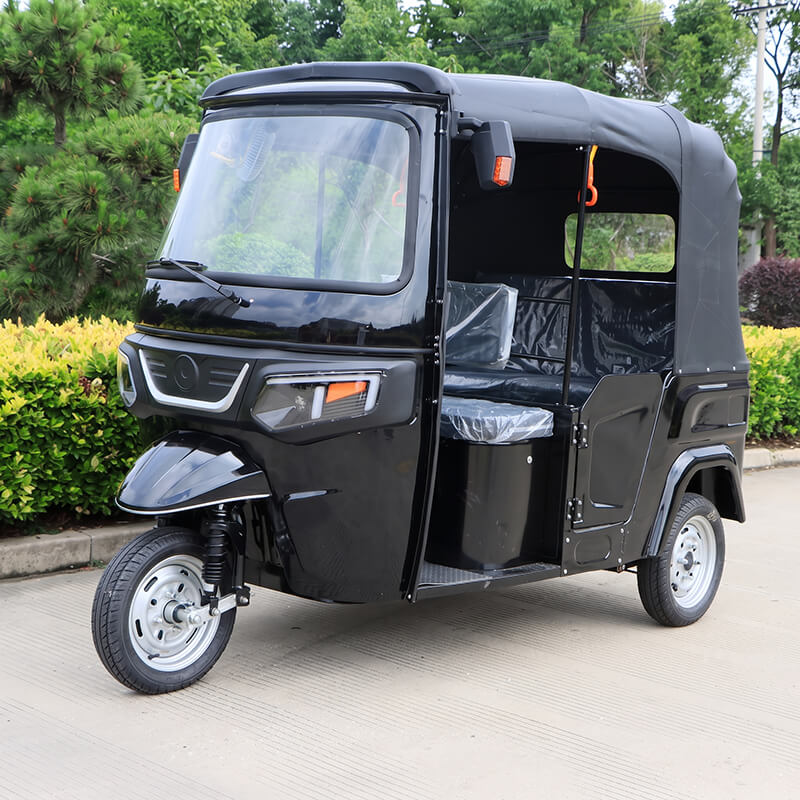

2000W Electric Tuk Tuk 4 Seater Passenger Electric Tricycle Taxi Tuk Tuk (Upgraded 4000W PMSM Configuration)
Engineered by Xuzhou LinkZoom New Energy Technology Co., Ltd. for commercial urban passenger transport, taxi fleets, and short-distance shuttle operations. Built with an automotive-grade 4000W flat-wire permanent magnet synchronous motor, a vector rotary variable controller, and an independent rear suspension with a cage.
Core Engineering Highlights & Commercial Advantages
Designed for B2B fleet operators, distributors, and municipal transit projects seeking a durable 2000W electric tuk-tuk/4 Seater Passenger electric tricycle taxi tuk-tuk, this single-row passenger model upgrades the powertrain to a 4000W automotive-grade flat-wire permanent magnet synchronous motor (PMSM). It pairs passenger-car suspension geometry with a compact three-wheel footprint for dense urban road networks.
- • 4000W Automotive-Grade Flat-Wire PMSM Drive: Replaces conventional round-wire motors with a high-slot-fill flat-wire permanent magnet synchronous motor, supporting sustained commercial operation and a 70 km/h maximum speed.
- • Vehicle Vector Algorithm Rotary Variable Controller: Uses automotive resolver-based vector control algorithms for precise rotor position tracking, smooth low-speed start under full passenger load, and optimised current regulation.
- • Cage Independent Suspension Rear Axle & Rocker Arm Damping: Equipped with a cage independent suspension rear axle and double-spring rocker-arm shock absorption to isolate road impacts and improve rear-cabin ride comfort for 4 passengers.
- • Front & Rear CBS Hydraulic Drum Braking System: The Combined Braking System (CBS) distributes hydraulic braking force across the front and rear wheels simultaneously, paired with 125/65R12 tubeless tyres for stable stopping performance.
- • 1+4 Seating Layout in a Compact 2600×1330×1800 mm Body: Carries 1 driver + 4 passengers with a 330 kg net weight (excluding battery), enabling high passenger turnover in narrow city lanes, tourist zones, and commuter hubs.
- • Complete Road-Ready Electrical & Cabin Equipment: Standard configuration includes an electronic liquid crystal display (LCD) instrument, LED bright headlight + bilateral lamps, turn signal indicators, single horn, and single electric windshield wiper.
- • Flexible Battery Procurement (60V / 72V 100Ah Lithium Optional): Supplied as a complete vehicle excluding battery (Reference Ex-Factory Unit Price: RMB 10,450 tax-included, excluding battery) so overseas importers can either install batteries locally to optimise shipping duties or order factory-configured 60V/72V 100Ah lithium battery packs as an optional accessory.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Vehicle Dimensions | 2600 × 1330 × 1800 mm | Standard Body |
| Number of Load (Seating Capacity) | 1 + 4 Persons (1 Driver + 4 Passengers) | 4-Seater Passenger Cabin |
| Motor | 4000W Automotive-Grade Flat-Wire Permanent Magnet Synchronous Motor (PMSM) | Standard Drive |
| Maximum Speed | 70 km/h | — |
| Control System | Vehicle Vector Algorithm Rotary Variable Controller | Automotive Vector Control |
| Rear Axle System | Cage Independent Suspension | Independent Rear Axle |
| Braking System | Front and Rear CBS Hydraulic Drum Brake | Combined Braking System |
| Shock Absorber | Double Spring Rocker Arm Type Shock Absorption | Heavy-Duty Damping |
| Tire Size | 125/65R12 (Tubeless Tire) | All Wheels |
| Net Weight | 330 kg | Excluding Battery |
| Instrument | Electronic Liquid Crystal Display (LCD) | Digital Cluster |
| Headlight + Bilateral Lamp | LED Bright Light | Front & Side LED |
| Steering Indication & Horn | Turn Signal + Single Horn | Standard |
| Windshield Wiper Motor | Single Wiper | Electric Wiper |
| Battery Specification | 60V / 72V 100Ah (Lithium Battery) | Optional Accessory |
| Reference Ex-Factory Unit Price | RMB 10,450 (Tax Included, Excluding Battery) | Optional Accessory Configurable |
Target B2B Fleet Applications
Built for daily point-to-point passenger transport with a 1+4 seating configuration, 70 km/h top speed, and low operating energy cost per kilometre.
Zero tailpipe emissions and low acoustic noise from the 4000W synchronous motor make it suited for resorts, eco-tourism zones, and gated communities.
The 2600×1330×1800 mm body navigates congested feeder roads easily while cage independent suspension maintains ride comfort across rough pavement.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle industrial base — Xuzhou LinkZoom New Energy Technology Co., Ltd. specialises in the R&D, production, and manufacturing of electric tricycles across five core product lines: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honours: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardisation, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (B2B Fleet & Distributor Guide)
Q1: Why is this model listed under 2000W Electric Tuk Tuk inquiries when it's equipped with a 4000W motor?
Many international buyers search for a 2000W Electric Tuk Tuk 4 Seater Passenger Electric Tricycle Taxi Tuk Tuk as the baseline category for 4-passenger electric auto rickshaws. For our Single-Row Passenger Tuk-Tuk (Product 1), Xuzhou LinkZoom fits a higher-spec 4000W automotive-grade flat-wire permanent magnet synchronous motor (PMSM) with a Vehicle Vector Algorithm Rotary Variable Controller, providing strong hill-climbing torque under a full 1+4 passenger load and a maximum speed of 70 km/h.
Q2: Does the vehicle come with a battery, or can we purchase it excluding the battery?
Both options are supported. The baseline ex-factory reference unit price is RMB 10,450 (tax included, excluding battery) with a net vehicle weight of 330 kg. For turnkey fleet deployment, you can select our factory-matched 60V or 72V 100Ah Lithium Battery as an optional accessory.
Q3: What chassis, suspension, and braking specifications ensure passenger safety?
The frame is fabricated on automated robotic welding lines and treated with electrophoretic coating (e-coating) and baked paint. Ride stability and stopping control are handled by a cage-independent suspension rear axle, double-spring rocker arm shock absorption, front and rear CBS hydraulic drum brakes, and 125/65R12 tubeless tyres.
Request Wholesale Pricing & Container Loading Plan
Guided by our philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we welcome global distributors and fleet buyers to visit our 78,000 m² production base in Fengxian, Xuzhou.
