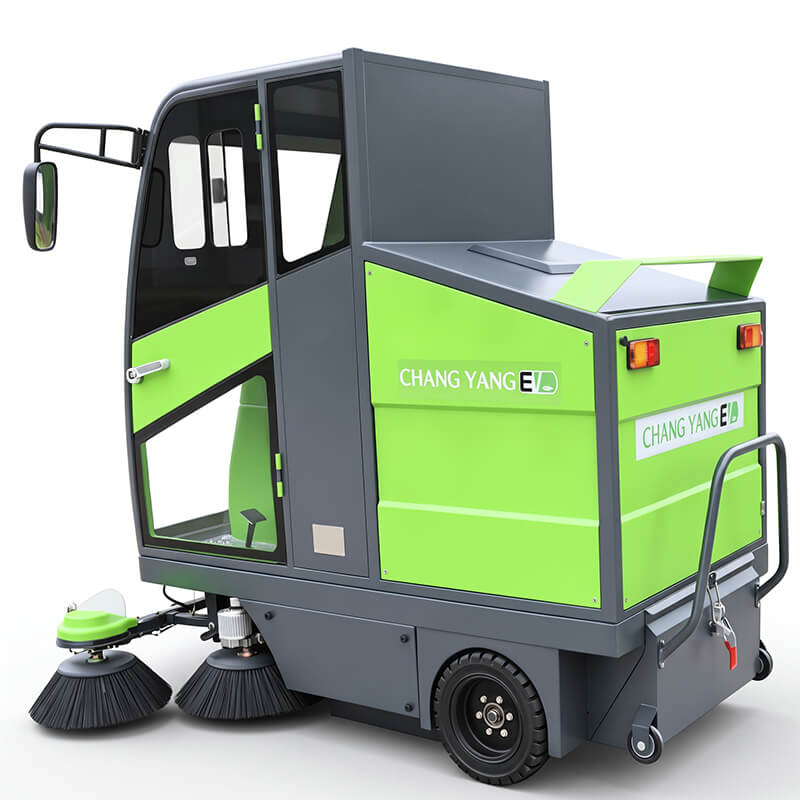

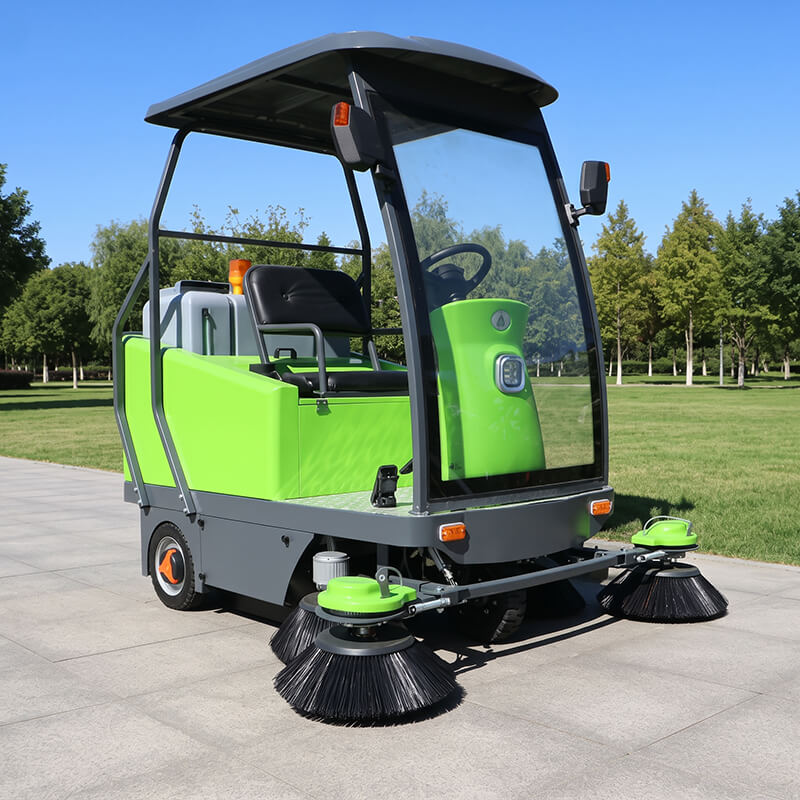

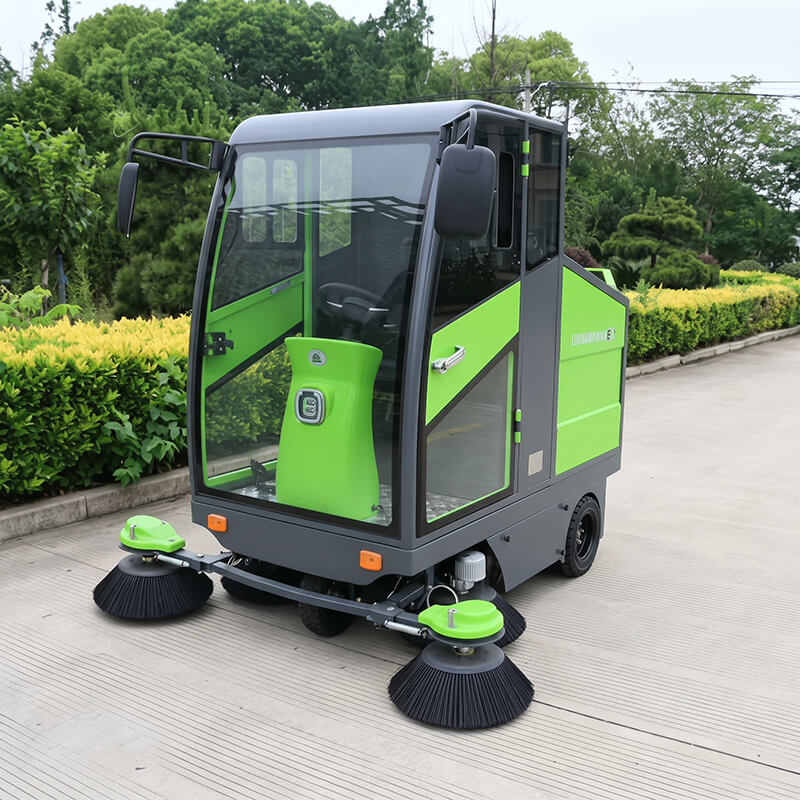

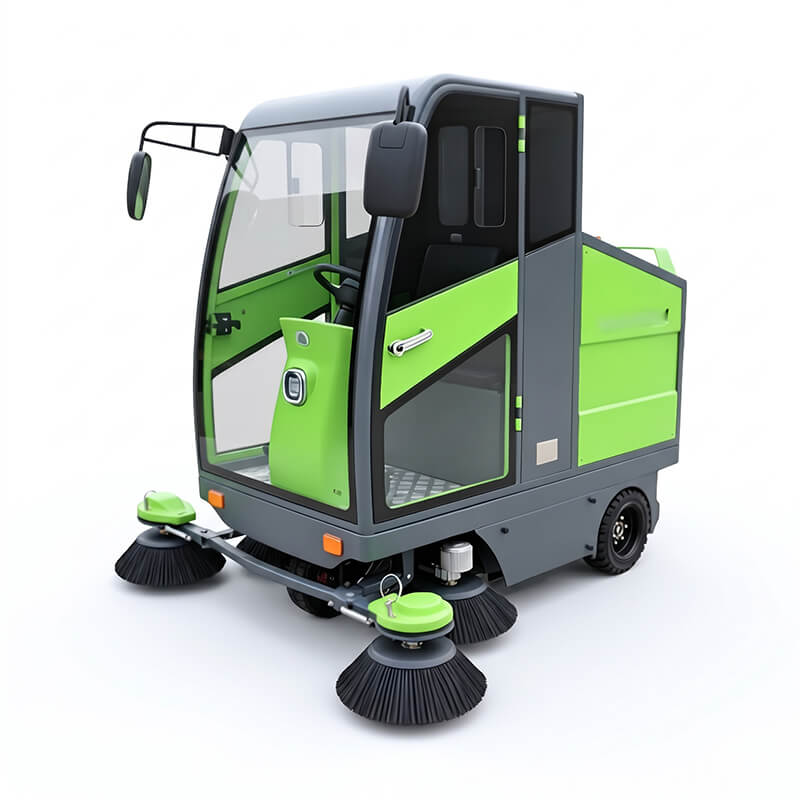

Fully Enclosed Electric Five-Brush Sweeper, 2000mm Sweeping Width, 15000㎡/h Efficiency (Model CY20C3)
Core Engineering Highlights & Commercial Sanitation Advantages
- • 2000mm Ultra-Wide Cleaning Path & 15,000 ㎡/h Working Efficiency: Combines an 800mm main roller brush with four 500mm edge brushes to deliver an expansive 2000mm sweeping width, achieving up to 15,000 ㎡/h continuous industrial and municipal surface cleaning.
- • High-Torque Multi-Motor Powertrain & Independent Electric Actuators: Powered by a 2200W drive motor, an 800W main brush motor, and four 250W high-torque edge brush motors. Equipped with three 12V 20W electric linear actuators for automated precision lifting and adjustment of brush assemblies.
- • Taiwan KMC Drive Chain & American COKERY Main Brush Belt: Utilizes heavy-duty Taiwan KMC industrial drive chain for positive walking traction and genuine American COKERY drive belt for the main brush, ensuring non-slip transmission and prolonged service life under abrasive road debris.
- • Dual Dust Suppression: 300L Water Tank + 250W VFD Centrifugal Fan: Equipped with a 300L high-capacity water tank and front atomizing water nozzles to eliminate airborne dust, paired with a 250W energy-saving variable frequency centrifugal fan and a 100W electric vibration dust-cleaning motor for HEPA-level filtration.
- • Heavy Baosteel Steel Frame & Fully Sheet Metal Enclosed Body: Built on a premium Shanghai Baosteel structural steel chassis with a fully sheet metal body and tempered high-definition glass doors, delivering superior impact resistance, rollover protection, and a 950 kg rugged operational mass.
- • Double Disc Hydraulic Disc Brake System & 2m Braking Distance: Equipped with dual disc hydraulic disc brakes and car-style mechanical handbrake parking, ensuring responsive stopping within a 2m braking distance, even when fully loaded or operating on 25° steep roadway grades.
- • Puncture-Proof Solid Rubber Tires & 1300mm Tight Turning Radius: Fitted with solid heavy-duty rubber tires (Front 300-100, Rear 400-100) on reinforced steel hubs for zero flat-tire downtime. Features a compact 1300mm turning radius with disc-type steering for effortless maneuvering in tight alleys.
- • 48V 150Ah High-Capacity Battery Pack & All-Weather Ergonomic Cockpit: Powered by 48V 150Ah maintenance-free batteries (Ultra Micro / Tianneng, 6 units) providing 6–8 hours of non-stop work per 6–8h charge. Cockpit features a combination dashboard, battery/voltage digital meters, electric windshield wipers, roof warning beacon light, skylight sunroof, cabin cooling fan, and patterned aluminum floorboards.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Model & Type | CY20C3 • Fully Enclosed Electric Five-Brush Sweeper | Sanitation Series |
| Allowable Passenger | 1 Person (Operator / Driver) | Enclosed Cabin |
| Dimensions (L × W × H) | 2300 × 2000 × 2200 mm | Overall Dimensions |
| Total Mass | 950 kg | Operating Weight |
| Sweeping Width | 2000 mm (2.0 m) | Five-Brush Span |
| Work Efficiency | 15,000 ㎡/h | High Coverage |
| Turning Radius | 1300 mm (Original Zero / In-Place Turn) | Tight Manifold Turn |
| Gradability | 25° | Ramp Climbing Ability |
| Continuous Working Hours | 6–8 Hours | Full Operating Shift |
| Charging Time | 6–8 Hours | Standard Charge Cycle |
| Braking Distance | 2 m | Emergency Stop Rating |
| Drive Power Motor | 2200W Electric Drive Motor | Heavy Traction Motor |
| Drive Axle | One-Stop Rear Axle (一体后桥) | Integrated Rear Axle |
| Main Brush Specification | Length: 800 mm • Motor: 800W | Heavy Roller Brush |
| Edge Brush Specification | Diameter: 500 mm (4 pcs) • Motors: High-Torque 250W × 4 pcs | 4 Independent Units |
| Electric Linear Actuators | 12V 20W (3 pcs) | Brush Lifting System |
| Walking Power Drive Chain | Taiwan KMC Chain | Industrial Grade |
| Main Brush Drive Belt | American COKERY Belt | Heavy-Duty Belt |
| Water Tank & Dust Suppression | Water Tank Capacity: 300L • Front Spray Water Misting: Yes | Anti-Dust Spraying |
| Trash / Waste Bin Capacity | 200 L | High-Volume Hopper |
| Centrifugal Suction Fan | 250W Energy-Saving Variable Frequency Centrifugal Fan | Low Noise Exhaust |
| Vibration Dust Motor | 100W Shaker Motor | Automated Filter Cleaning |
| Battery Configuration | 48V 150Ah (Ultra Micro / Tianneng, 6 Maintenance-Free Batteries) | Long-Life Tier-1 Cells |
| Tyre Specifications | Solid Heavy-Duty Rubber Tires • Front: 300-100 • Rear: 400-100 | Puncture-Proof Solid |
| Wheel Hub | Steel Wheel Hub | High-Rigidity Steel |
| Body & Chassis Material | Steel Frame Structure + Fully Sheet Metal Body • Chassis Steel: Shanghai Baosteel | Automotive Grade Steel |
| Front Shock Absorber | Casting Aluminum Straight Tube Hydraulic Shock Absorber (without external spring) | 43mm Dia., 5mm Steel Pipe |
| Braking & Parking System | Double Disc Hydraulic Disc Brake System • Car-Style Handbrake Parking | Dual Hydraulic Disc |
| Steering Mode | Disc Type Steering Wheel | Ergonomic Steering |
| Car Door & Floor Pedal | Tempered High-Definition Glass Doors • Aluminum Patterned Plate Pedal | Non-Slip Aluminum |
| Instrument & Cabin Accessories | Combination Dashboard, Battery & Voltage Display, Wipers, Warning Lights, Skylight Sunroof, Cabin Fan | All-Weather Cab |
| OEM / ODM Customization | All Configurations Are Fully Customizable (Color, Branding, Battery, Spares) | Factory Direct OEM |

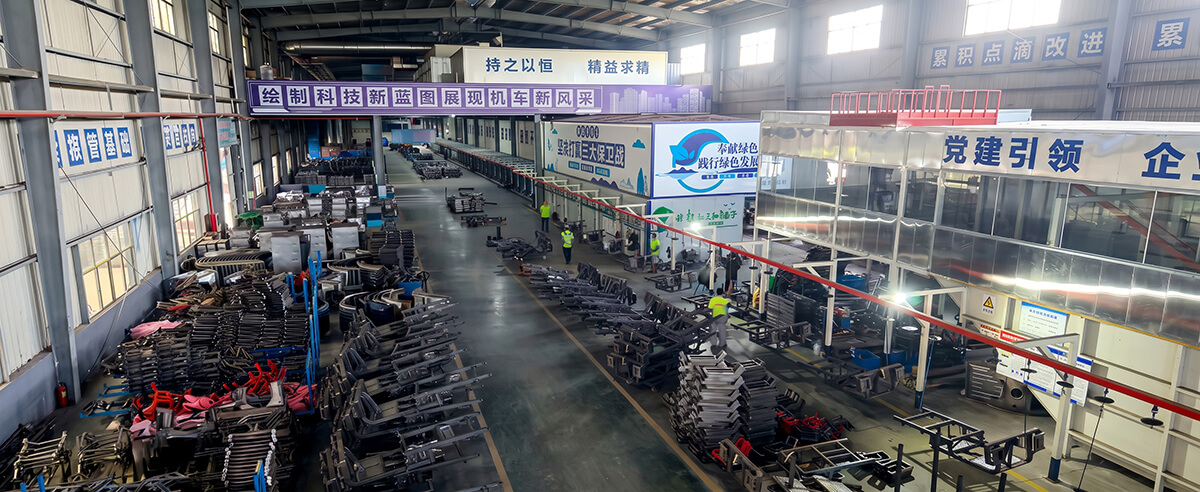

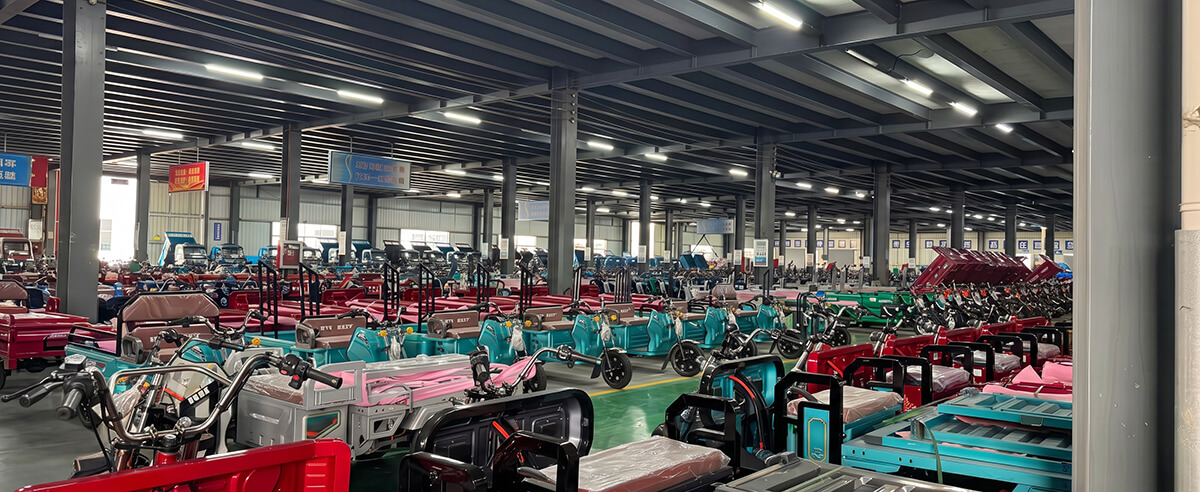

Factory Scale, Robotic Manufacturing & Final Assembly Staging
Commercial & Municipal Cleaning Application Scenarios
Engineered for public sanitation departments. The 2000mm width, 15,000 ㎡/h capacity, and misting dust suppression clean street gutters, pedestrian plazas, and curb shoulders quietly without dust clouds.
Handles metal shavings, cement grit, gravel, and packaging scraps across industrial roadways and large warehouse thoroughfares, utilizing puncture-proof solid tires and 200L hopper volume.
Provides 24/7 continuous apron, freight terminal, and container yard clearing with zero exhaust emissions, rapid 2m stopping distance, and high-intensity overhead warning lights.
The 1300mm tight turning radius allows agile maneuvering through narrow tree-lined park alleys, garden paths, and campus walkways while the fully enclosed cab shelters operators in all weather.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — China's premier electric vehicle manufacturing cluster and the hometown of Emperor Gaozu of Han (Liu Bang) — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric commercial vehicles across five core categories: Environmental Sanitation Special Vehicles (Electric Road Sweepers & Garbage Collection Trikes), Three-Wheel Heavy Cargo Series, Passenger Tuk-Tuk Series, Multifunctional Passenger & Cargo Series, and EEC EU Market Homologated Series.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple proprietary patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (Electric Five-Brush Sweeper CY20C3)
Q1: How does the five-brush system and 300L water spray eliminate sweeping dust?
The CY20C3 synchronizes four 500mm edge brushes (250W each) to channel gutter and sidewalk debris toward the central 800mm main roller brush (800W). Simultaneously, front atomizing water nozzles fed by the 300L water tank dampen fine particulate matter before it can become airborne. A 250W variable frequency centrifugal suction fan draws dust into the internal filter, where a 100W vibration motor continuously shakes the filter clean to maintain high suction airflow.
Q2: What are the durability benefits of the Taiwan KMC chain and solid rubber tires?
Unlike consumer-grade rubber belts, the Taiwan KMC industrial walking drive chain delivers positive mechanical power transfer from the 2200W motor to the one-stop rear axle without slippage, even when climbing 25° inclines. The solid heavy-duty rubber tires (Front 300-100, Rear 400-100) are completely puncture-proof, eliminating flat tire emergencies from broken glass, nails, and metal turnings commonly encountered on industrial roads.
Q3: Can the sweeper configuration, body color, and branding be customized for municipal bids?
Yes. As a verified source manufacturer with full sheet metal stamping and automated baking paint lines, LinkZoom supports full OEM / ODM customization. We offer custom government sanitation paint finishes (yellow, green, white, or corporate themes), client logo branding on tempered glass doors, custom bristle stiffness (polypropylene, steel wire, or mixed), localized charging plugs, and export CKD/SKD container loading plans.
Request Wholesale Pricing & Municipal Tender Datasheets
Guided by our corporate philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we warmly invite global municipal sanitation contractors, industrial cleaning equipment distributors, and facility management fleets to partner with us or visit our 78,000 m² manufacturing base in Fengxian, Xuzhou.
