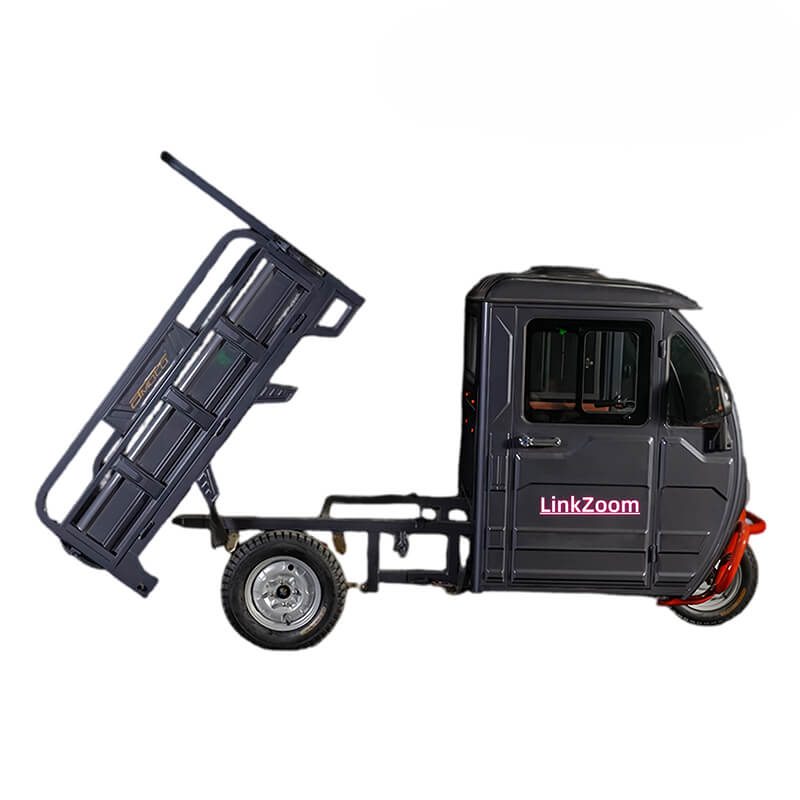

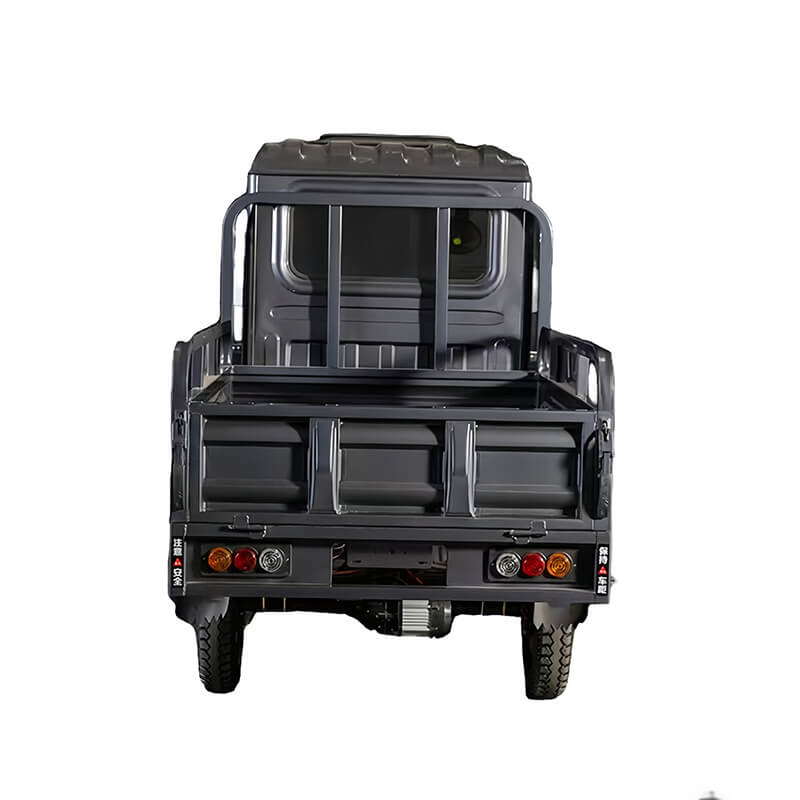

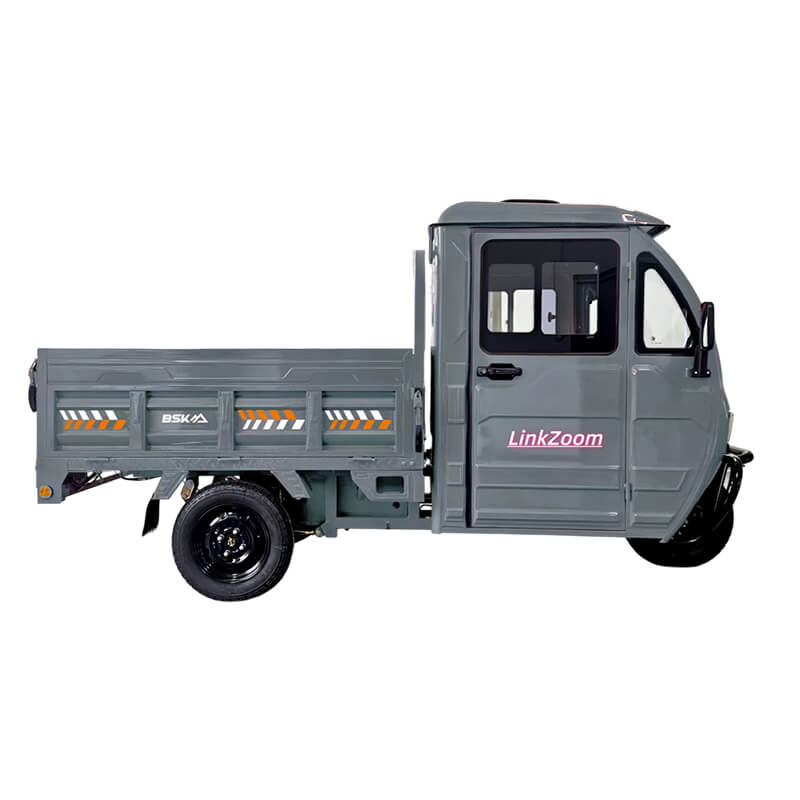

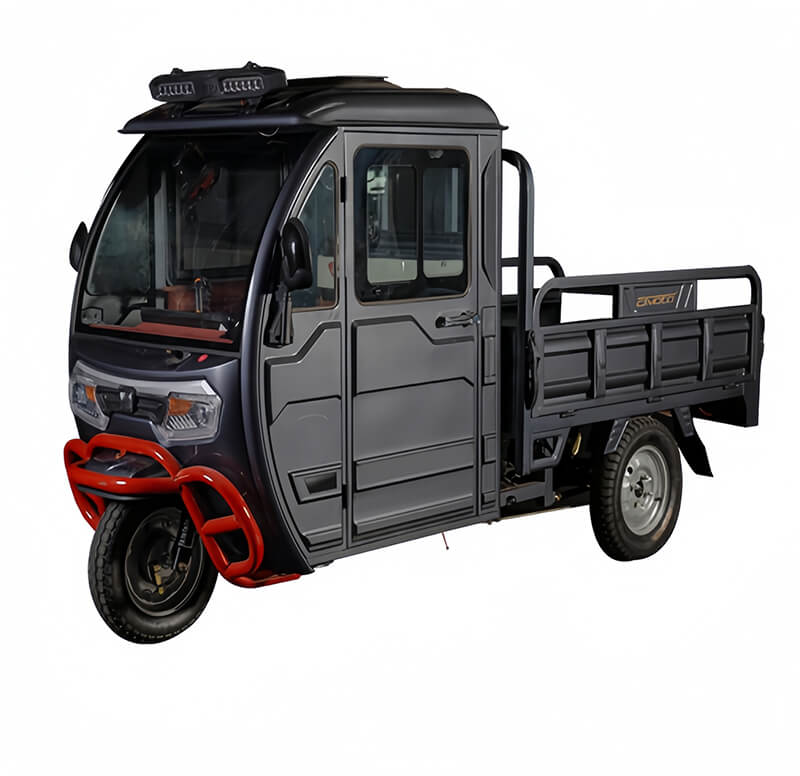

A31 Fully Enclosed Electric Cargo Tipping Tricycle, 745kg Payload, 2000 W 72 V Cabin Tipper
Core Engineering Highlights & Commercial Fleet Advantages
- • Fully Enclosed All-Weather 2-Person Cabin with Steering Wheel Control: Constructed with stamped automotive-grade cold-rolled sheet steel and panoramic laminated safety glass. The spacious 1-row, 2-person seating layout comfortably houses the driver and an assistant with car-style steering wheel maneuvering, isolating extreme rain, snow, winter cold, and dust.
- • 745kg Maximum Load Capacity with Integrated Tipping Bed: Engineered with a reinforced chassis subframe and heavy-duty tipping dump box. Boasting a verified 745kg payload rating with a curb weight of only 280kg, it delivers high loading efficiency and rapid automatic/gravity material dumping for gravel, agricultural harvest, sand, fertilizer, and bulk goods.
- • 2000W 72V High-Torque Powertrain & ≤30° Gradeability: Driven by a robust 2000W 72V electric motor regulated by an intelligent 30T Modular Controller. Engineered for steep hill climbing, it handles sustained slope gradients of ≤30° under full 745kg load while reaching an efficient urban cruising speed of 40 km/h.
- • 72V 58Ah Power System & 70–85 km Commercial Daily Range: Standard configuration carries a high-stability 72V 58Ah Lead-Acid Battery pack delivering an operating range of 70–85 km per full charge, with a recharge cycle of 6–8 hours. Compatible with OEM lithium battery configurations upon fleet request.
- • Premium Driver Comfort: Built-In Heater, Sunroof Fan & Bluetooth Audio: Equipped with a factory-installed electric heater for harsh winter operations, an overhead sunroof ventilation fan for rapid summer cooling, integrated Bluetooth wireless connectivity, and a multimedia radio for operator satisfaction.
- • Integrated Safety Architecture: HD Rear View Camera & Disc Brakes: Features a dashboard LCD screen linked to an HD rear-view camera to eliminate blind spots when reversing and tipping in tight spots. Deceleration is handled by front disc brakes and rear disc/drum brakes for responsive stopping under heavy cargo momentum.
- • High Ground Clearance (230mm) & Reinforced Tubeless Cargo Tires: Built with 230 mm ground clearance, a 1978 mm wheelbase, and a 1050 mm track width to clear rutted farm tracks and construction curbs. Fitted with Front 3.75-12 and Rear 4.0-12 heavy-ply tubeless tires on reinforced stamped steel rims.
- • Optimized Container Packing: 35 Units SKD / 14 Units CBU: Engineered specifically for international ocean shipping efficiency, accommodating 35 units in SKD (Semi Knocked Down) packing or 14 units in CBU (Completely Built Up) container loading, substantially reducing landed logistics cost per unit for global B2B distributors.
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Series & Model | Fully Enclosed Cargo & Tipper Series • Model A31 | A31 Cargo Tipper |
| Overall Dimensions (L×W×H) | 2957 × 1176 × 1657 mm | Compact Enclosed Footprint |
| Wheelbase | 1978 mm | High Structural Stability |
| Track Width | 1050 mm | Stable Cornering Geometry |
| Ground Clearance | 230 mm | High Rough-Road Clearance |
| Motor Voltage & Rated Power | 72V • 2000W High-Torque Electric Motor | Standard Powertrain |
| Climbing Gradeability | ≤ 30° | High Incline Capability |
| Control System | 30T Modular Controller | Intelligent Power Regulation |
| Battery Type & Capacity | 72V 58Ah Lead-Acid Battery | Lithium Battery Optional |
| Driving Operating Range | 70 – 85 km | Per Full Charge |
| Charging Time | 6 – 8 Hours | Standard AC Charging |
| Maximum Speed | 40 km/h | Commercial Speed Limit |
| Tire Specifications | Front: 3.75-12 Steel Rim • Rear: 4.0-12 Steel Rim | Tubeless Cargo Tires |
| Braking System | Front: Disc Brake • Rear: Disc Brake / Drum Brake | Dual Hydraulic Circuit |
| Seat Rows & Seating Capacity | 1 Row • 2 Persons (Driver + Passenger) | Enclosed 2-Seater Cab |
| Steering Mechanism | Automotive Steering Wheel | Car-Style Control |
| Curb Weight | 280 kg | Lightweight Rigid Body |
| Maximum Load Capacity | 745 kg | Rated Cargo Payload |
| Multimedia & Entertainment | Bluetooth Wireless + Radio | In-Cabin Audio System |
| In-Cabin Heater | Equipped | Winter Thermal Comfort |
| Sunroof Ventilation Fan | Equipped | Summer Active Exhaust |
| Rear View Camera | Equipped with Dashboard Display | Reversing & Tipping Safety |
| Container Packaging Loading | SKD: 35 Units • CBU: 14 Units | Per 40HQ Ocean Container |
| OEM / ODM Customization | All Configurations Are Customizable | Factory Direct OEM |
Commercial & Farm Application Scenarios
Engineered for fruit orchards, grain silos, greenhouse operations, and rural farms. The fully enclosed cabin protects agricultural workers in rainy, freezing, or scorching seasons, while the 745kg tipping cargo bed enables swift gravity discharge of harvested crops and organic fertilizer.
Transports up to 745kg of cement bags, sand, gravel, bricks, and renovation debris through narrow residential alleyways and unpaved grades where full-sized dump trucks cannot maneuver, aided by the 230mm elevated chassis clearance and disc braking.
Provides weather-sealed parcel security and driver comfort across city courier routes, hardware distribution hubs, and wholesale food markets. The steering wheel controls and HD reversing camera ensure agile maneuvering in dense traffic.
Zero exhaust emissions permit quiet indoor workshop and outdoor factory compound material transfers. The 2-person seating allows logistics crews to travel together with maintenance equipment, spare parts, and packaging goods.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's primary electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System (ISO9001), Safety Production Standardization, Occupational Health and Safety Management System (OHSAS18001), and Environmental Management System (ISO14001).
Frequently Asked Questions (A31 Enclosed Cargo Tipper)
Q1: What are the key commercial advantages of the A31 fully enclosed cabin compared to open cargo tricycles?
The A31 Fully Enclosed Electric Cargo Tricycle features an automotive-style rigid cab that completely shields the driver and passenger from extreme cold, heavy rain, UV radiation, and construction dust. Unlike open tricycles, it integrates an in-cabin electric heater for sub-zero winter comfort and an overhead sunroof ventilation fan for active summer airflow, paired with steering wheel control, allowing commercial fleet drivers to operate year-round without weather downtime.
Q2: How does the tipping cargo bed mechanism function with the 745kg payload rating?
The cargo body is engineered with high-strength pivot hinges and heavy-duty tipping release hardware, tested to a verified maximum payload capacity of 745kg over a 280kg curb weight. Operators can rapidly discharge agricultural bulk harvest, sand, loose gravel, or landscaping dirt without manual shoveling. Reversing and unloading in tight spots is made safe with the factory-standard HD rear-view camera.
Q3: What powertrain and battery options power the A31 across steep farm roads?
The A31 is equipped with an automotive-spec 2000W 72V electric motor and 30T Modular Controller, achieving a climbing gradeability of ≤30° and a top speed of 40 km/h. The standard 72V 58Ah Lead-Acid Battery provides 70–85 km of commercial driving range with a 6–8 hour charging cycle. Optional factory-configured lithium battery packages are also available upon request.
Q4: What container loading plans (SKD / CBU) and OEM customization services are available?
To minimize ocean freight costs for international importers, the A31 is optimized for 35 units in SKD (Semi Knocked Down) container loading or 14 units in CBU (Completely Built Up) shipping per 40HQ container. As a source vehicle manufacturer, Xuzhou LinkZoom provides complete OEM/ODM customization covering exterior paint colors, custom fleet logos, cargo box dimensions, hydraulic tipping ram upgrades, and localized CKD/SKD assembly kits.
