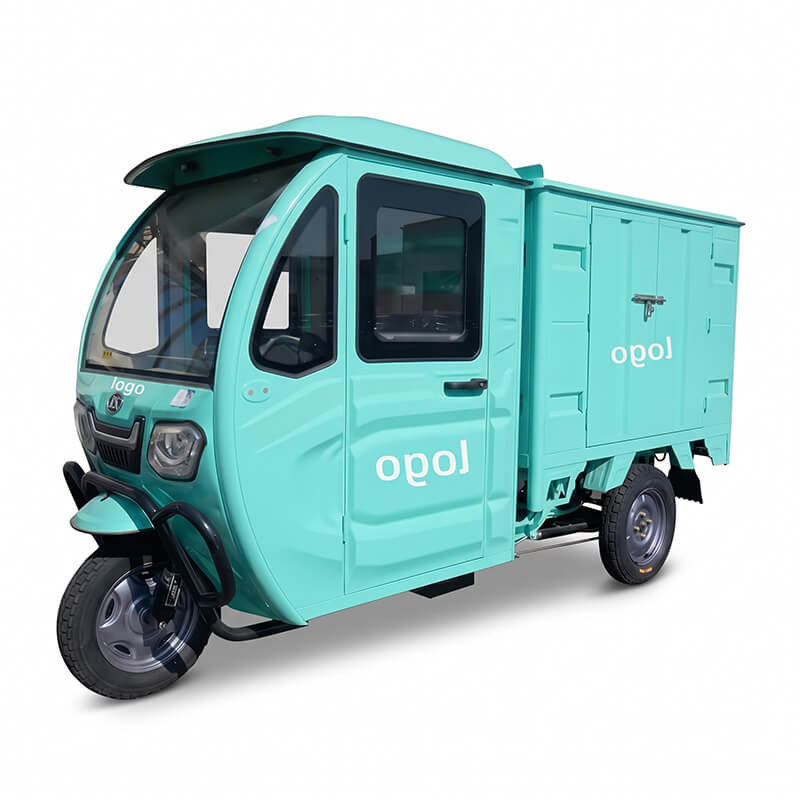

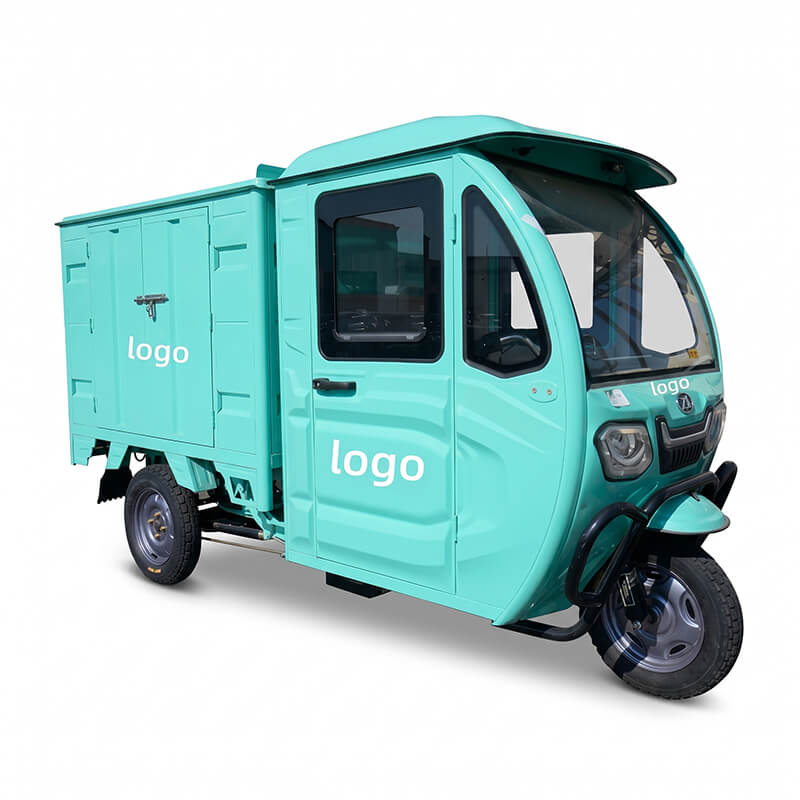

1500W Versatile Heavy-Duty Electric Cargo Tricycle, 1000kg Load for Urban Transport & Couriers
Core Engineering Highlights & Commercial Fleet Advantages
- • 1000kg Heavy-Duty Load Capacity & 3130×1280×2040 mm Enclosed Van Body: Built with high-tensile stamped steel and a high-cube enclosed cargo container, engineered specifically for urban parcel delivery, courier logistics, and wholesale cargo haulage with a verified 1000kg (1.0 Ton) load weight rating.
- • 1500W / 1800W High-Efficiency Permanent Magnet Motor (PMSM): Powered by an automotive-grade 1500W (upgradeable to 1800W) permanent magnet synchronous motor with high copper slot fill and heat dissipation, delivering sustained high torque for heavy freight hauling and steep bridge climbs.
- • Universal Three-Speed Intelligent Control System: Features a universal three-speed controller supporting smooth starts in congested urban courier routes, anti-roll hill holding, flexible low/medium/high speed modes, and energy optimization for ≥85 km range per charge.
- • 160 Integrated Variable Rear Axle with Climbing Gear Mechanism: Equipped with a heavy-duty 160 integrated shifting rear axle featuring a dual-ratio internal gearbox. Operators can shift into high-torque low gear at the flick of a lever to tackle steep ramps, underground parking basements, and elevated roads under a 1-ton load.
- • φ37 External Spring Shock Absorption & Front 375-12 / Rear 400-12 Cargo Tires: Combines a φ37 heavy-duty external spring hydraulic front suspension to absorb urban road vibrations with Front 375-12 and Rear 400-12 wear-resistant, high-ply commercial cargo tires mounted on reinforced steel rims.
- • All-Weather Enclosed Cabin with Electric Wiper, HD Digital Meter & LED Lighting: Fully enclosed 1-person driver cabin with lockable metal doors, sliding ventilation glass, and a curved front windshield with a single electric wiper motor. Fitted with an HD Digital Meter, dual speakers, LED bright headlights + bilateral lamps, and turn signals.
- • 60V / 72V 58Ah Battery Flexibility & Full Factory OEM/ODM Customization: Compatible with 60V / 72V 58Ah Lithium Battery or Lead-Acid Battery packs (optional accessory) to achieve ≥85 km operating range. As a direct source factory, all vehicle configurations are customizable (cargo box shelves, partition walls, side roller doors, fleet brand colors, logos, and CKD/SKD container shipping).
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Category & Model | Electric Cargo Tricycle Series • Express Courier Delivery Trike | Enclosed Courier Model |
| Vehicle Dimensions (L × W × H) | 3130 × 1280 × 2040 mm | High-Cube Enclosed Van |
| Load Weight (Rated Payload) | 1000 kg (1.0 Ton) | Max Rated Cargo Load |
| Number of Load (Seating Capacity) | 1 Person (Driver) | Enclosed Driver Cabin |
| Motor Type & Rating | 1500W / 1800W Permanent Magnet Motor (PMSM) | High-Torque Synchronous |
| Mileage (Operating Range) | ≥ 85 km | Per Full Charge |
| Control System | Universal Three-Speed Controller | Multi-Speed Power Switching |
| Rear Axle System | 160 Integrated Variable Rear Axle | Climbing Dual-Ratio Gearbox |
| Shock Absorber Type | φ37 External Spring Shock Absorption | Hydraulic Front Fork Damping |
| Tire Specifications | Front 375-12 • Rear 400-12 | Heavy-Duty Cargo Ply Tires |
| Windshield Wiper Motor | Single Wiper | Electric Front Wiper |
| Instrument Cluster | HD Digital Meter | Speed, Battery & Range Display |
| Horn | Dual Speakers | High-Decibel Dual Horns |
| Headlight + Bilateral Lamp | LED Bright Light | High-Lumen Matrix LED |
| Steering Indication | Turn Signal | Front & Rear Indicators |
| Battery Configuration | 60V / 72V 58Ah (Lithium Battery / Lead-Acid) | Optional Accessory |
| OEM / ODM Customization | All Configurations Are Customizable | Factory Direct OEM |

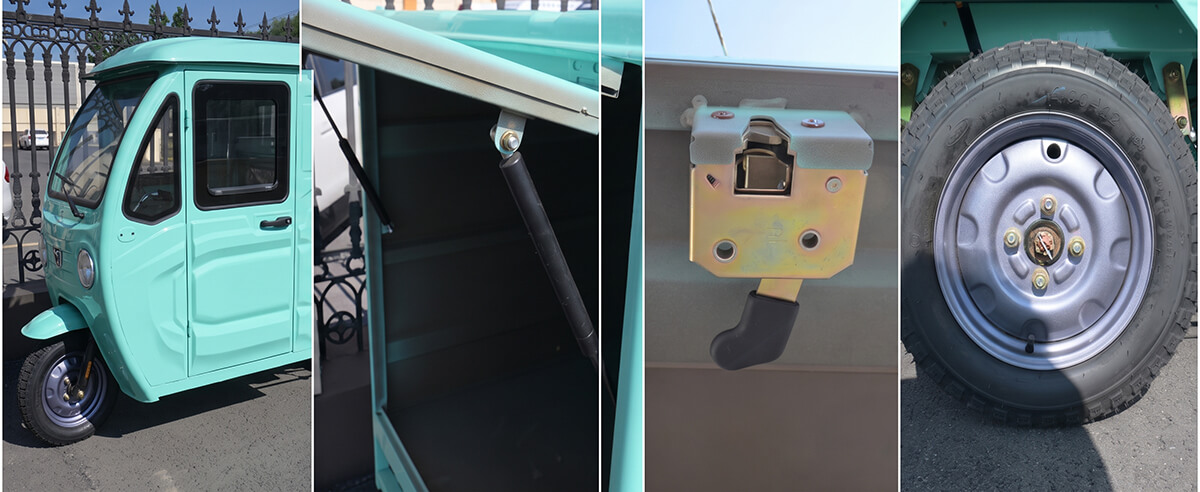

Structural Craftsmanship & Heavy-Duty Component Details
Urban Transport & Courier Logistics Applications
Engineered for last-mile couriers handling high daily parcel turnover. The enclosed 3130×1280×2040 mm box keeps packages dry, organized, and theft-protected.
Handles grocery delivery, fresh produce distribution, beverage crates, and commercial wholesale supplies directly to urban storefronts and residential complexes.
Zero tailpipe emissions allow clean inter-building luggage transport, spare part conveyance, and warehouse-to-terminal tool transfer with 1000kg payload rating.
Equipped with tamper-proof door latches and all-weather driver cab protection, making it dependable for postal mail routes, pharmaceutical shipments, and laboratory deliveries.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (Electric Courier & Cargo Tricycle)
Q1: How do the 1000kg load capacity and 3130×1280×2040 mm body support urban courier logistics?
The high-cube enclosed cargo container utilizes vertical cargo volume to maximize package density while maintaining a narrow 1280 mm width, allowing smooth navigation through narrow streets, warehouse lanes, and pedestrian zones inaccessible to standard delivery trucks. With a 1000kg (1-ton) rated payload, courier fleets can consolidate more packages per run, lowering per-delivery logistics costs.
Q2: What are the operational benefits of the 1500W/1800W motor and 160 integrated variable rear axle?
The high-torque 1500W / 1800W permanent magnet synchronous motor (PMSM) paired with the 160 integrated variable rear axle provides dual-ratio mechanical torque switching. Drivers can shift into a high-torque, low gear when ascending steep parking garage ramps, bridge approaches, or unpaved alleyways with a 1000 kg load without stalling or motor overheating.
Q3: What battery options and custom configurations are available for commercial fleet buyers?
The vehicle is compatible with 60V / 72V 58Ah Lithium Battery or Lead-Acid Battery packs as optional accessories, delivering an operating range of ≥85 km per charge. We offer extensive OEM/ODM customization including custom internal shelving, rear vs. side opening doors, hydraulic door struts, custom fleet colors, logo printing, and CKD/SKD container loading to optimize ocean freight.
Request Wholesale Pricing & Container Loading Plan
Guided by our business philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we warmly welcome international logistics companies, postal contractors, and vehicle distributors to visit our 78,000 m² manufacturing plant in Fengxian, Xuzhou.
