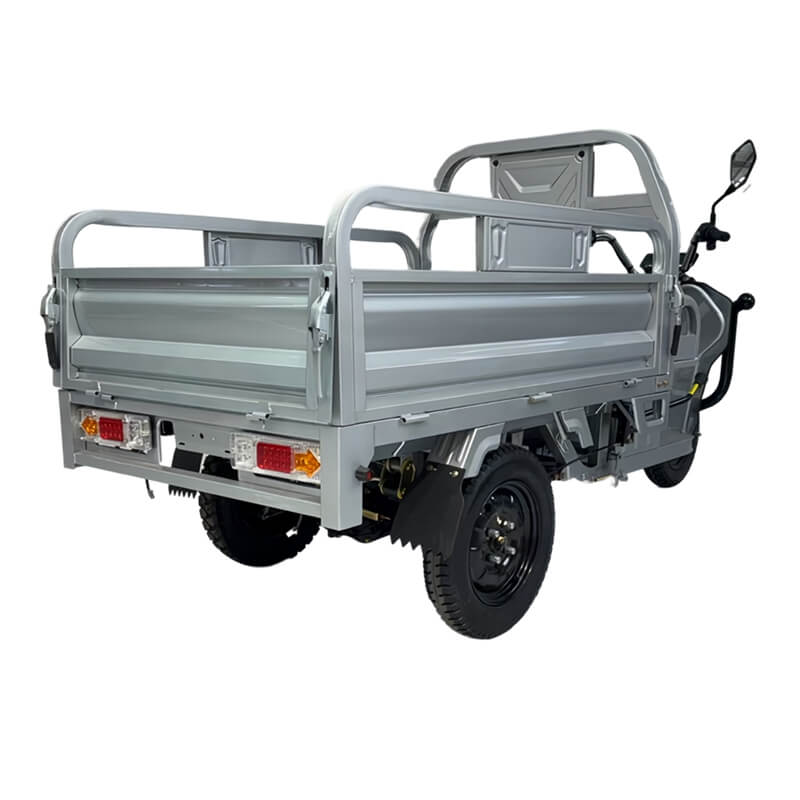

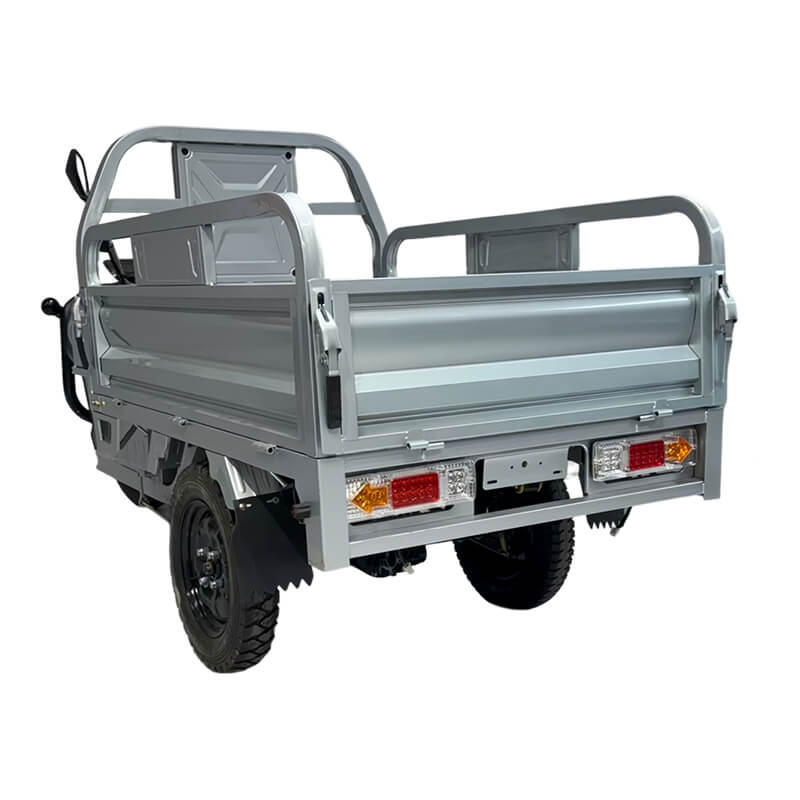

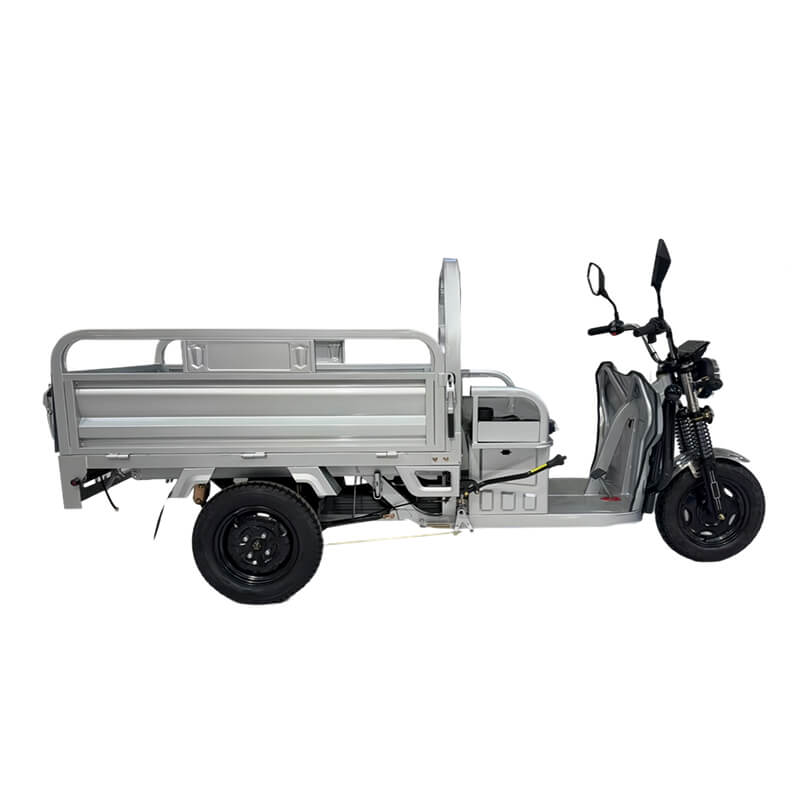

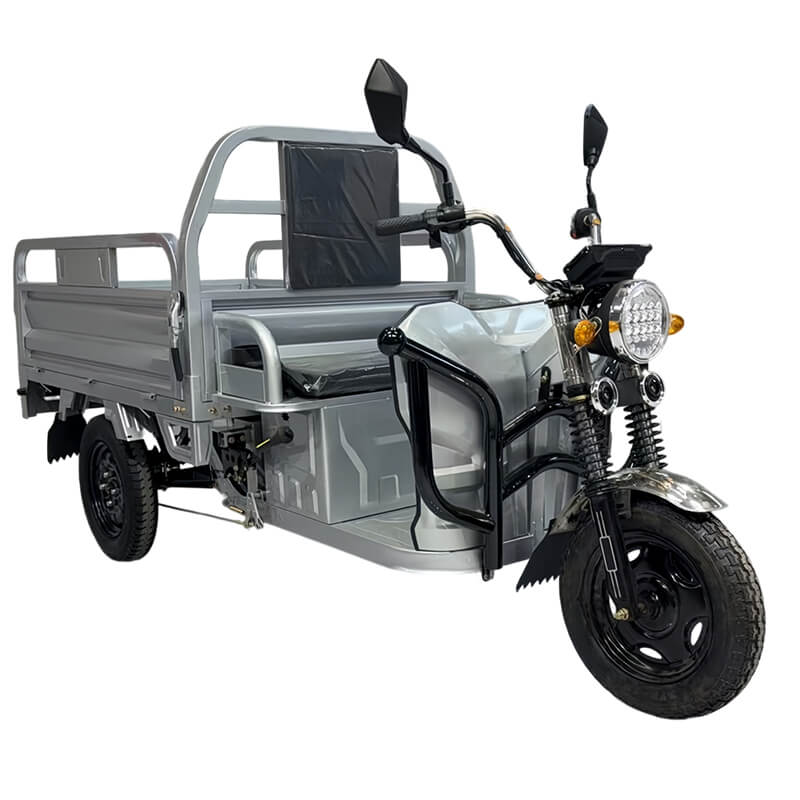

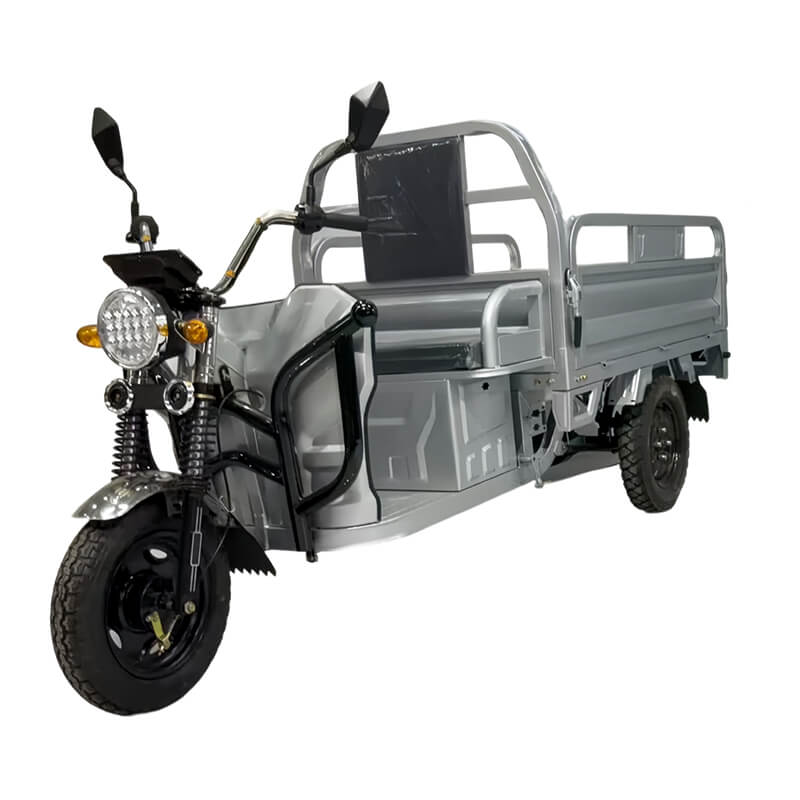

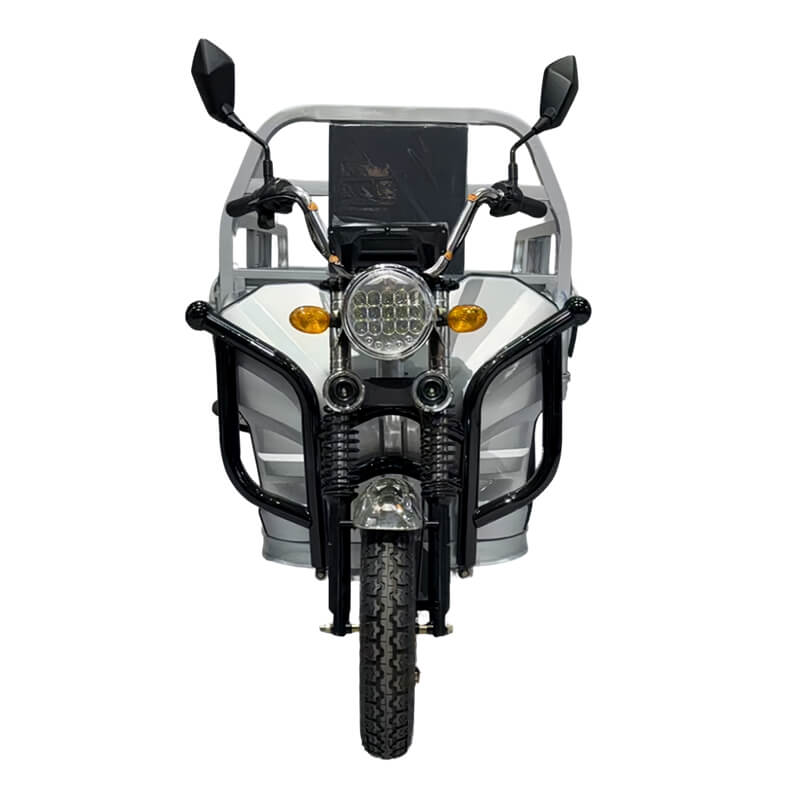

A32 EEC 1000W 60V 20Ah Adult Electric Cargo Tricycle, 350kg Payload, 2-Person Cabin Tipper
Core Engineering Highlights & Commercial Fleet Advantages
- • 350kg Verified Max Load Capacity & 200kg Optimized Curb Weight: Built on a high-strength robotic-welded stamped steel chassis with dimensions of 2900 × 1200 × 1350 mm and a 1270 mm wheelbase. Delivers an industrial 350 kg payload capacity for municipal parcels, community logistics, agricultural produce, and retail distribution while maintaining a nimble 200 kg curb weight.
- • 60V 1000W High-Efficiency Powertrain with 18T Modular Controller: Powered by an efficient 1000W 60V permanent magnet motor coupled with an 18T modular intelligent controller, generating powerful low-end torque for a verified ≤30° climbing gradeability across ramps, overpasses, and rural farm grades.
- • Dual-Speed Governing System (25 km/h EEC Mode • 40 km/h Open Duty): Engineered for European and global regulatory compliance, the controller supports a factory-governed 25 km/h maximum speed meeting European Union EEC/COC road-legal criteria, as well as an unrestricted 40 km/h commercial transit speed for closed campuses and private estates.
- • 2-Person Automotive Enclosed Cabin with Steering Wheel Drive: Features an automotive-style 1-row / 2-person seating capacity equipped with an ergonomic steering wheel rather than a motorcycle handlebar, offering intuitive automotive car-like driving dynamics, superior wind/rain weather protection, and reduced operator driving fatigue.
- • Full Multimedia & Comfort Package (Heater, Sunroof Fan, Camera & Bluetooth): Fully loaded with commercial amenities including an in-cabin heater for winter operations, sunroof ventilation fan for summer airflow, HD rear-view camera for safe cargo reversing, plus integrated Bluetooth and Radio audio system.
- • Heavy-Duty Steel Rim Tubeless Tires (Front 3.5-12 / Rear 3.75-12) & 190mm Clearance: Equipped with puncture-resistant Front 3.5-12 and Rear 3.75-12 steel rim tubeless tires, reliable front and rear drum brakes, and an elevated 190 mm ground clearance that easily surmounts curbs, gravel tracks, and uneven delivery surfaces.
- • Container Shipping Efficiency (32 Units SKD / 58 Units CKD) & Factory OEM Customization: Optimized for ocean container transport with 32 Units SKD or 58 Units CKD loading per 40HQ container, significantly lowering landed freight cost per vehicle. As a direct China source manufacturer, all vehicle configurations are customizable (lithium battery upgrades, custom cargo box railings, brand color matching, private label decals, and local homologation support).
Technical Configuration Parameters
| Configuration Category | Technical Specification | Remarks |
|---|---|---|
| Product Series & Model | EEC Certified Series (EU Market) • Model A32 Adult Electric Cargo Tricycle | Model A32 |
| Vehicle Dimensions (L×W×H) | 2900 × 1200 × 1350 mm | Compact Urban Cab |
| Wheelbase | 1270 mm | High Stability Base |
| Track Width / Cargo Area | 1500 × 1200 mm | Wide Stance Profile |
| Ground Clearance | 190 mm | Superior Obstacle Clearance |
| Motor Voltage & Rated Power | 60V 1000W Permanent Magnet Motor | High Torque Efficiency |
| Gradeability (Climbing Ability) | ≤ 30° | Heavy Incline Capability |
| Controller System | 18T Modular Controller | Intelligent Power Regulation |
| Battery Type & Voltage | 60V Lead-Acid Battery (Lithium Option Available) | Standard Power Pack |
| Battery Capacity | 20 Ah | Standard 60V 20Ah Pack |
| Driving Range | 30 km | Per Standard Charge Cycle |
| Charging Time | 6 – 8 Hours | Standard AC Charging |
| Maximum Speed | 25 km/h / 40 km/h | EEC Road-Legal / Standard |
| Front Tire Specification | 3.5-12 Steel Rim Tubeless Tire | Puncture-Proof Steel Rim |
| Rear Tire Specification | 3.75-12 Steel Rim Tubeless Tire | High-Load Steel Rim |
| Braking System | Front Drum Brake • Rear Drum Brake | All-Wheel Drum Braking |
| Seat Rows & Seating Capacity | 1 Row / 2 Persons (Driver + Passenger) | 2-Seater Enclosed Cab |
| Curb Weight (Tare Weight) | 200 kg | Lightweight Rigid Frame |
| Max. Load Capacity (Payload) | 350 kg | Rated Commercial Cargo |
| Multimedia & Operator Comfort | Bluetooth, Radio, In-Cabin Heater, Sunroof Fan, HD Rear View Camera, Steering Wheel | Standard Amenities |
| Container Packaging (40HQ Container) | SKD: 32 Units • CKD: 58 Units | High-Density Container Load |
| OEM / ODM Customization | All Configurations Are Fully Customizable (Battery, Bed, Colors, Logo) | Factory Direct OEM |
Commercial & Municipal Fleet Application Scenarios
Fully enclosed 2-person cabin protects parcel freight from rain and dust. Complies with urban low-emission speed zones at 25 km/h, providing seamless courier delivery in European and global congested districts.
Zero tailpipe emissions and low acoustic noise allow clean material handling across university campuses, eco-resorts, manufacturing compounds, and solar park maintenance grounds.
With 190 mm ground clearance, ≤30° gradeability, and 350 kg payload, the A32 effortlessly hauls harvested fruits, vegetable crates, feed bags, and irrigation tools across farm paths.
Equipped with a rear-view camera, in-cabin heater, and sunroof fan, providing all-season comfort for municipal street sweepers, public garden maintenance workers, and community inspection patrols.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System (ISO 9001), Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System (ISO 14001).
Frequently Asked Questions (A32 Adult Electric Cargo Tricycle)
Q1: How does the A32 meet European market road regulations under the EEC Certified Series?
The A32 is purpose-designed for European and overseas compliance. Its 18T modular controller features dual-speed governing, enabling an electronic 25 km/h road-legal speed limit compliant with European L2e electric tricycle standards, as well as an unrestricted 40 km/h mode. Equipped with full road-legal lighting, dual rear-view camera assistance, front and rear drum brakes, and steel rim tubeless tires, it provides hassle-free homologation for EU distributors.
Q2: What are the container loading quantities and packing options for bulk export orders?
For standard 40HQ high-cube shipping containers, the A32 loads 32 Units in SKD (Semi-Knocked Down) configuration or 58 Units in CKD (Completely Knocked Down) configuration. SKD allows fast assembly at local overseas dealerships with basic tooling, while CKD optimizes container space utilization to minimize per-unit ocean freight and import tariff duties.
Q3: Can battery capacity, cabin amenities, and cargo body styles be customized (OEM / ODM)?
Yes. As a primary China manufacturer, all configurations are customizable. The standard 60V 20Ah Lead-Acid Battery can be upgraded to high-capacity Lithium Battery packs (40Ah – 60Ah) for driving ranges exceeding 60–80 km. We offer full OEM/ODM branding, private label badges, customized cargo bed dimensions, optional hydraulic tippers, and custom exterior paint schemes.
Request Wholesale Pricing & Container Loading Plan
Guided by our business philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we warmly welcome international electric vehicle distributors, municipal logistics fleet buyers, and agricultural equipment importers to visit our 78,000 m² production facility in Fengxian, Xuzhou.
