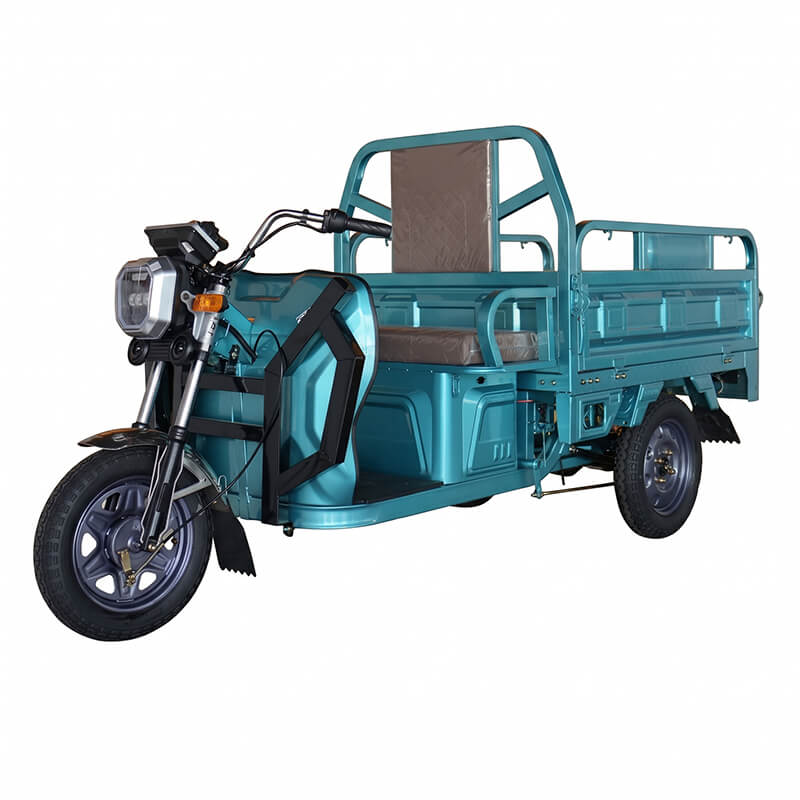

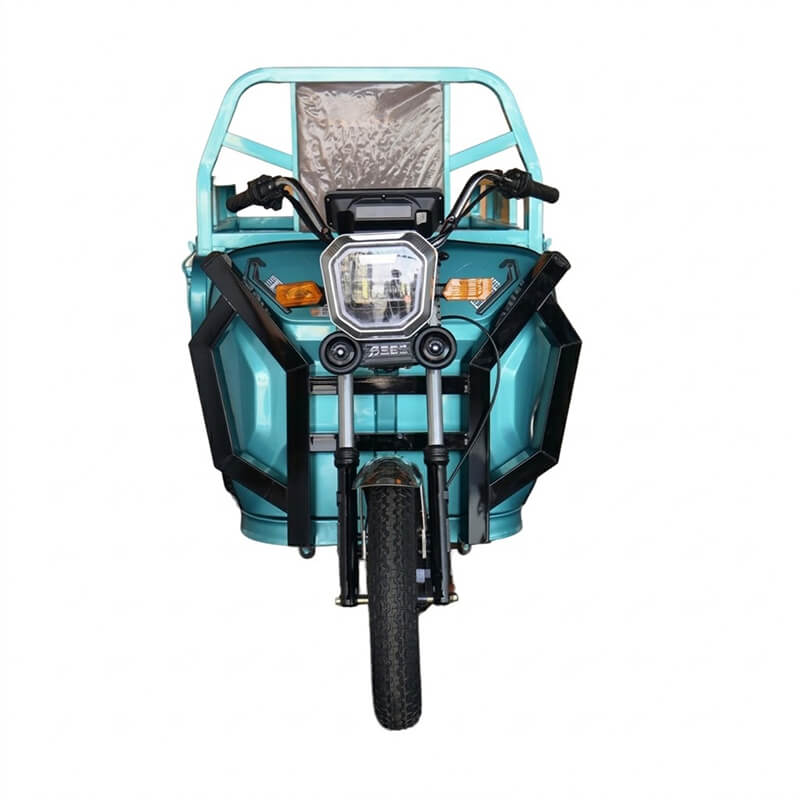

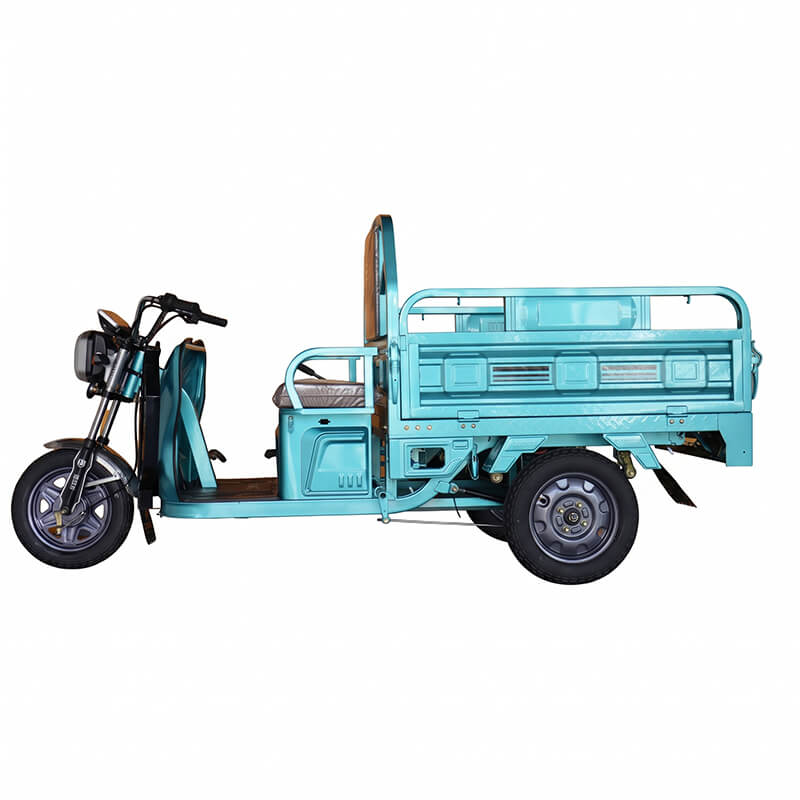

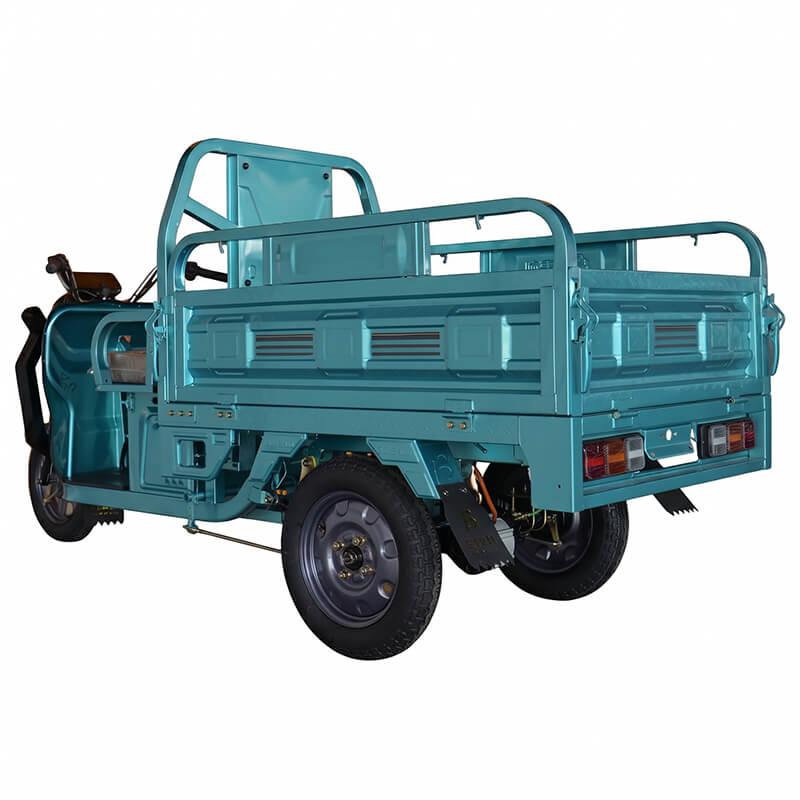

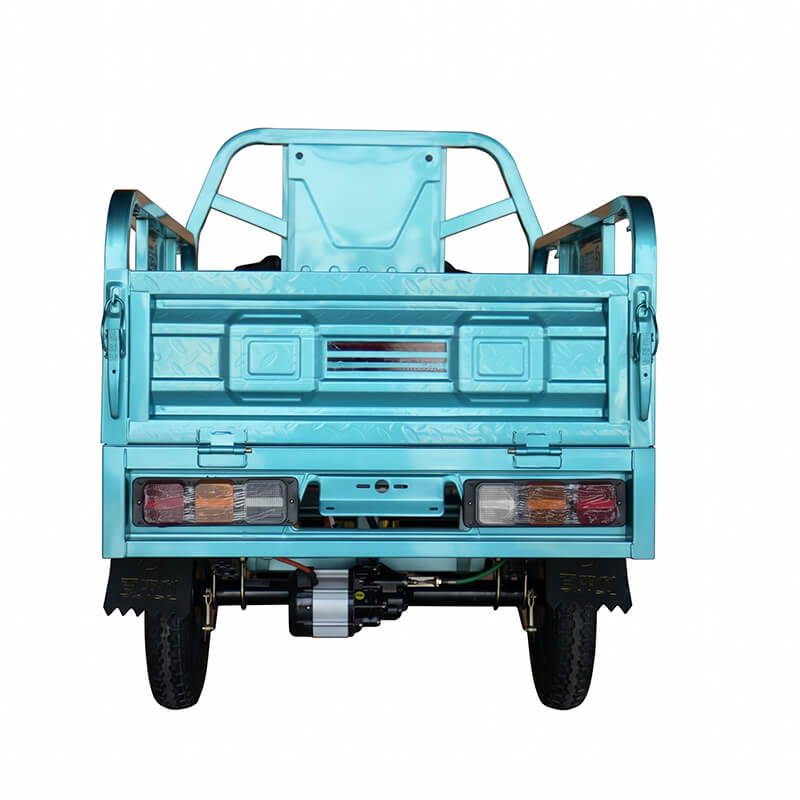

Factory-Direct Lightweight Electric Cargo Trike, Urban Short-Distance Transport for Courier Delivery
Core Engineering Highlights & Commercial Fleet Advantages
- • 1000kg Verified Load Capacity & 1600×1100×300 mm Cargo Tipper Bed: Constructed with cold-rolled stamped steel and reinforced chassis longitudinal beams. The 1.6-meter tipper bed handles a verified 1000kg (1 ton) load capacity, ideal for express parcel cages, courier parcel delivery, agricultural produce, and construction materials.
- • 1500W High-Efficiency Permanent Magnet Synchronous Motor (PMSM): Driven by an automotive-grade 1500W permanent magnet synchronous motor with high-conductivity flat-wire windings, providing continuous high torque, low operating heat, and reliable gradeability under a full 1-ton payload.
- • 60A 60V / 72V Universal Intelligent Control System: Equipped with a high-current 60A dual-voltage 60V/72V universal controller, ensuring smooth acceleration, multi-speed power switching, anti-runaway ramp safety, and energy efficiency for ≥80 km operating mileage per charge.
- • 1160 Integrated Variable Rear Axle with Dual-Ratio Climbing Gear: The 1160 heavy-duty shifting rear axle integrates an internal mechanical reduction gearbox. Operators can shift into high-torque low gear at the flick of a lever, effectively doubling drive torque on steep urban parking ramps or unpaved rural slopes.
- • φ37 External Spring Hydraulic Shock Absorption & Dongyue Heavy-Duty Tires: Features φ37 external spring hydraulic front fork suspension to dampen severe road impacts, paired with premium Dongyue Brand tires (Front 375-12 / Rear 400-12) on reinforced stamped steel rims for anti-puncture durability.

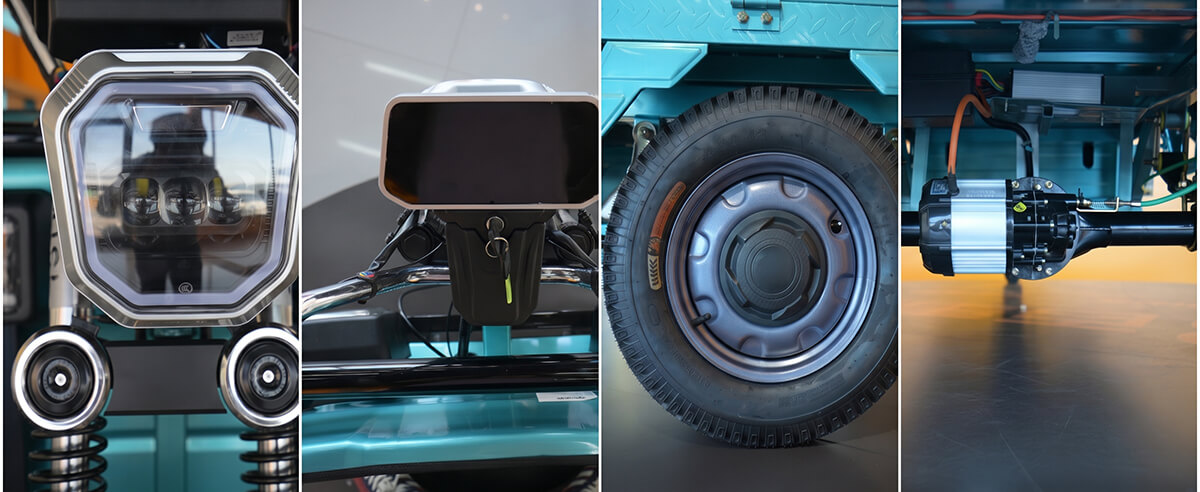

- • HD Digital LCD Meter, Dual Speakers & Matrix LED Lighting: The driver cockpit includes an HD Digital Meter displaying real-time velocity, battery level, and mileage, flanked by dual speakers, LED bright headlight + bilateral lamps, and handlebar turn signals for all-weather day-and-night navigation.
- • Flexible Battery Configurations & Factory Direct Customization (OEM / ODM): Supports optional 60V / 72V 58Ah Lithium Battery or Lead-Acid Battery packs for ≥80 km range, or supplied ex-battery for localized battery assembly. As an authoritative direct-source manufacturer, all vehicle configurations are customizable (cargo box heights, express parcel cages, paint colors, and CKD/SKD container packaging).
Technical Configuration Parameters
| Configuration Parameter | Technical Specification | Remarks |
|---|---|---|
| Product Series & Model | Three-Wheel Cargo Series • Blade 130 Lightweight Cargo Trike | Model LZ-C04 |
| Cargo Box Size | 1600 × 1100 × 300 mm | 1.6m Tipper Bed |
| Load Weight (Payload Capacity) | 1000 kg (1.0 Ton) | Max Rated Load |
| Number of Load | 1 Person (Driver) | Single Driver Cockpit |
| Motor Type & Power Rating | 1500W Permanent Magnet Motor (PMSM Flat-Wire) | Standard Powertrain |
| Operating Mileage (Range) | ≥ 80 km | Per Full Charge |
| Control System | 60A 60V / 72V Universal Controller | High-Current Dual Voltage |
| Rear Axle System | 1160 Integrated Variable Rear Axle | Dual-Ratio Climbing Gear |
| Shock Absorber Type | φ37 External Spring Shock Absorption | Heavy-Duty Front Damping |
| Tire Size & Brand | Front 375-12 • Rear 400-12 • Dongyue Tire | High-Load Industrial Tires |
| Instrument Cluster | HD Digital Meter | Real-Time Digital Display |
| Horn | Dual Speakers | Dual High-Decibel Warning |
| Headlight + Bilateral Lamp | LED Bright Light | High-Lumen Matrix LED |
| Steering Indication | Handlebar Turn Signal | Front & Rear Indicators |
| Battery Configuration | 60V / 72V 58AH (Lithium Battery / Lead Acid) | Optional Accessory |
| OEM / ODM Customization | All Configurations Are Customizable | Factory Direct Source |

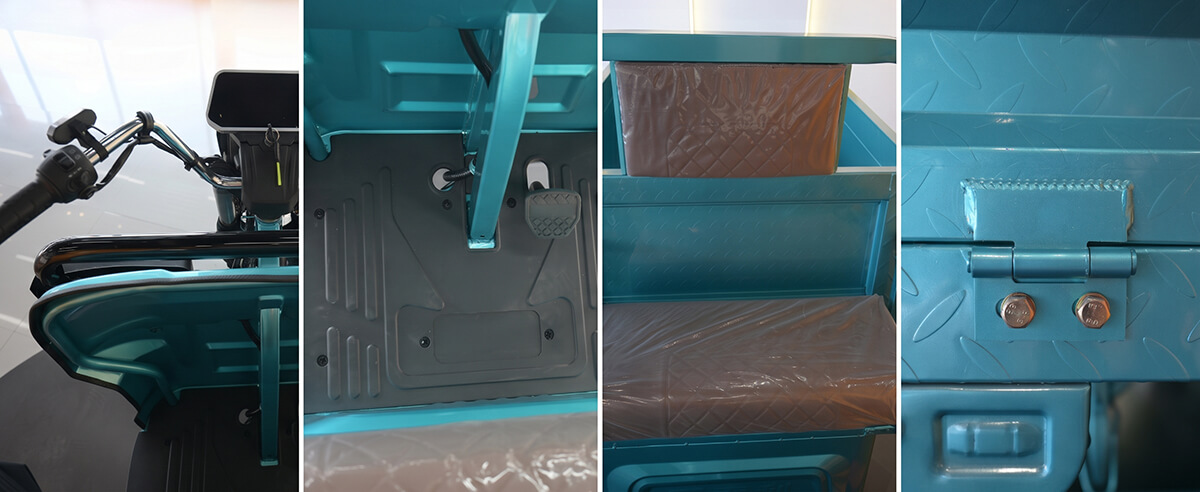

Key Structural Craftsmanship & Heavy-Duty Component Details
Commercial & Courier Delivery Application Scenarios
Engineered for last-mile express couriers, postal routes, and e-commerce parcel distribution across dense residential lanes and commercial CBD complexes where large delivery vans cannot navigate.
Transports fruit crates, seed bags, animal feed, and fertilizer across agricultural orchards and greenhouse corridors. The 1160 variable axle low-gear climbs dirt grades easily under a 1000 kg load.
Zero tailpipe emissions and low acoustic footprint allow seamless movement inside manufacturing plants, logistics warehouses, and industrial parks for finished goods and tooling components.
Provides municipal street contractors and public utility departments with a clean, low-cost transport solution for landscaping maintenance, roadway cleaning equipment, and community waste tipping.
About Xuzhou LinkZoom New Energy Technology Co., Ltd.
Located in Feng County, Jiangsu Province — the hometown of Emperor Gaozu of Han (Liu Bang) and China's largest electric vehicle manufacturing cluster — Xuzhou LinkZoom New Energy Technology Co., Ltd. specializes in the R&D, manufacturing, and global export of electric tricycles across five core product series: Passenger Tuk-Tuk Series, Three-Wheel Cargo Series, Multifunctional Passenger & Cargo Series, EEC EU Market Series, and Environmental Sanitation Special Vehicles.
Complete In-House Industrial Chain & Automated Production Lines:
Authoritative Certifications & Manufacturing Qualifications:
- Tier-1 Motor Vehicle Production Qualification: Listed in the National Motor Vehicle Manufacturing Catalogue (Tier 1).
- Enterprise Honors: Awarded National High-Tech Enterprise, Jiangsu Provincial Private Technology Enterprise, and “Xuzhou Quality Award”, backed by multiple national patents.
- 4 System Certifications: Certified for Quality Management System, Safety Production Standardization, Occupational Health and Safety Management System, and Environmental Management System.
Frequently Asked Questions (Blade 130 Electric Cargo Trike)
Q1: How does the 1160 Integrated Variable Rear Axle improve 1000kg load climbing performance?
The 1160 Integrated Variable Rear Axle incorporates a dual-ratio internal mechanical reduction gearbox. When hauling maximum 1000kg payloads up steep underground parking garage ramps, bridge approaches, or unpaved rural slopes, the driver shifts to a low gear ratio, effectively doubling wheel torque output without straining the 1500W permanent magnet motor or causing current overload in the 60A controller.
Q2: Why is the Blade 130 (利刃130) ideally suited for urban courier delivery and short-haul express logistics?

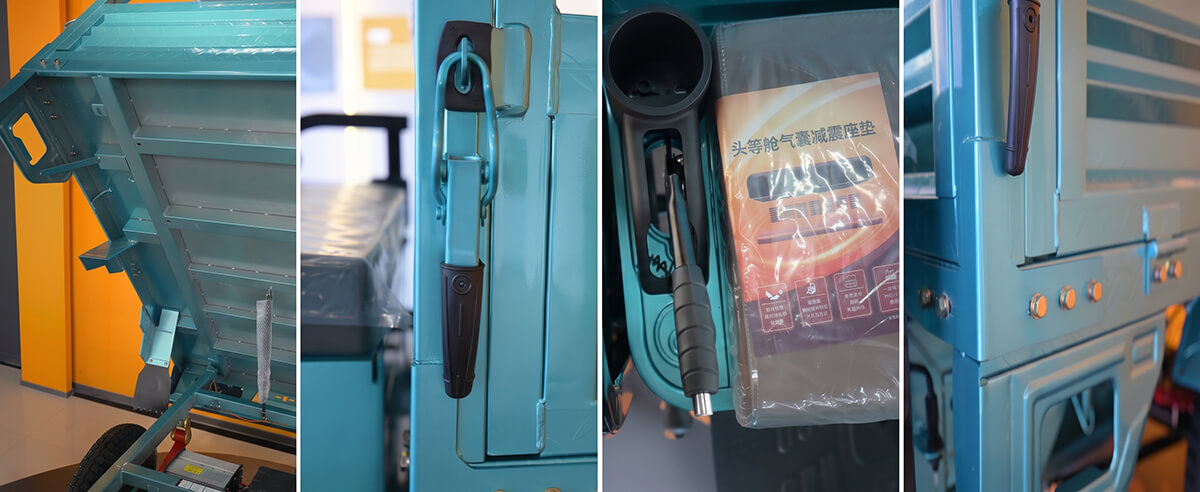

With its agile 1600 × 1100 × 300 mm cargo tipper bed, ≥80 km operating mileage, and narrow turning radius, the Blade 130 maneuvers effortlessly through congested alleys, high-density residential communities, and university campus gates. The pneumatic lifting strut allows rapid parcel container tipping, while the mechanical ramp handbrake and Dongyue tires (Front 375-12 / Rear 400-12) ensure stop-and-go safety.
Q3: What battery options and factory OEM customization services are available?
The vehicle operates on a 60A 60V / 72V universal controller and supports optional 58Ah Lithium Battery or 58Ah Heavy-Duty Lead-Acid Battery packs. As a direct factory manufacturer, we support full OEM/ODM customization: custom cargo box wall heights, courier parcel cage enclosures, manual/hydraulic tipping mechanisms, paint finishes, logo branding, and CKD/SKD container packaging solutions.
Request Wholesale Pricing & Container Loading Plan
Guided by our business philosophy of “Survive by quality, capture the market through low profit, develop through reputation, and treat friends with sincerity,” we warmly invite international logistics fleet buyers, agricultural implement dealers, and cargo trike importers to visit our 78,000 m² production facility in Fengxian, Xuzhou.
